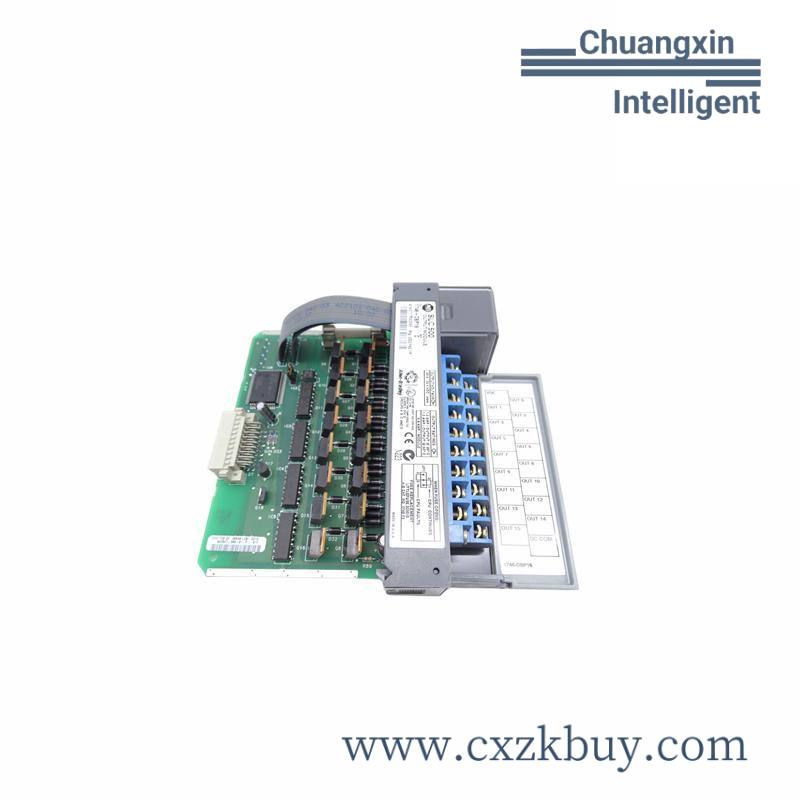

AB 1746-OBP16 Economic Digital DC Output Module
The AB 1746-OBP16 is an economical yet reliable digital DC output module designed for industrial automation applications. This module is ideal for controlling various loads within an industrial setting, ensuring efficient and seamless operation.
Model Number:1746-OBP16
Manufacturer:Allen Bradley
Type:Digital DC Output Module
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current Per Output:0.25 A At 60 DEG C
Continuous Current Per Module:4 A At 60 DEG C
Isolation – Communication Circuits:500 VDC
Isolation – Backplane:1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95%
The Allen Bradley 1746-OBP16 Economic DC Output Module is engineered for high reliability and durability, making it ideal for industrial environments. Its open-type enclosure ensures optimal heat dissipation and efficient operation under varying conditions. With its 16 channels of direct current output, this module supports a wide range of automation needs, from simple to complex manufacturing processes. The module operates within a broad input voltage range of 24 VDC, providing flexible integration options into existing systems. Each channel features a robust design capable of handling up to 0.25 A continuous current at 60 DEG C, with a maximum total output of 4 A per module. Furthermore, it comes with excellent isolation properties, safeguarding against electrical interference and ensuring stable performance even in harsh industrial settings. Installation is straightforward with the chassis mounting method, allowing for easy integration into control panels or automation systems.
