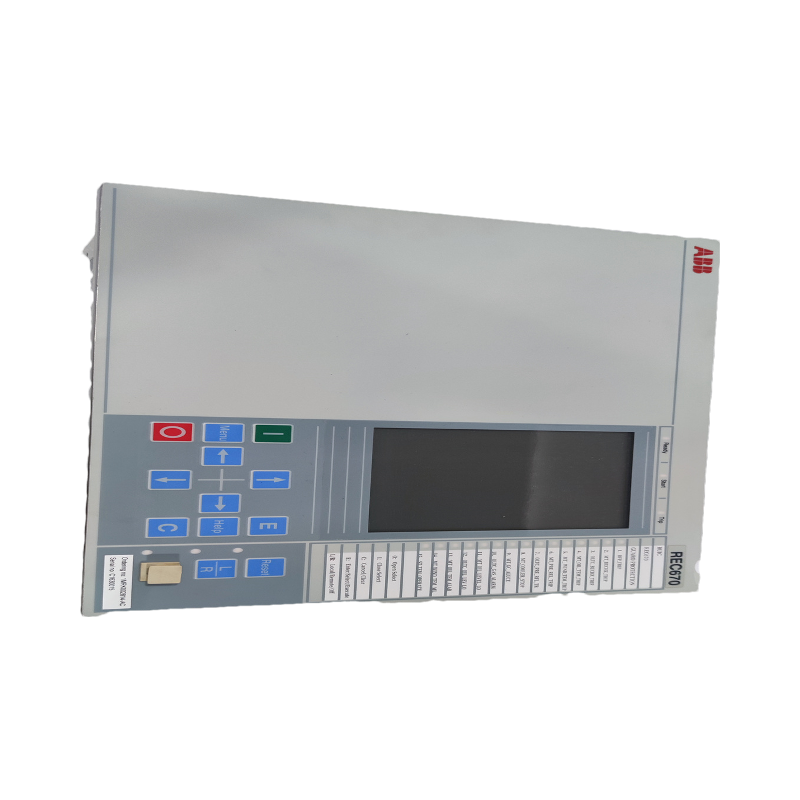

ABB 1MRK004814-AC

• I/O Capabilities:
  • Supports analog/digital inputs/outputs (e.g., voltage/current measurement, status monitoring).
  • Flexible configuration for protection and control tasks.
• Communication:
  • Ethernet: IEC 61850, Modbus TCP, DNP3.0, PROFINET, or OPC UA (depending on firmware).
  • Serial: RS-232/RS-485 for legacy device integration.
  • Fiber-Optic: Optional for long-distance communication (e.g., C37.94 standard).
• Power Supply: 24 VDC or 110/230 VAC (depending on configuration).
• Environmental:
  • Operating temperature: -20°C to +60°C.
  • Protection: IP20 (EN 60529) for indoor use.

2. Functional Features

• Protection Functions:
  • Overcurrent, earth fault, and thermal overload protection.
  • Advanced features like differential protection (if applicable to the model).
• Control Capabilities:
  • Automated switching (e.g., breaker control, load shedding).
  • Programmable logic for custom applications.
• Event Recording:
  • Disturbance recording and sequence-of-events (SOE) timestamping.
• Synchronization:
  • Auto/manual synchronization with adjustable voltage/phase settings.
• HMI:
  • Local display for configuration and status monitoring (if equipped).

3. Application Scenarios

• Substation Automation:
  • Protection and control of breakers, transformers, and feeders in medium/high-voltage substations.
• Power Generation:
  • Line protection and management for overhead/underground transmission networks.
• Industrial Processes:
  • Critical infrastructure control in sectors like mining, oil/gas, and manufacturing.
• Renewable Energy:
  • Integration of solar/wind farms into the grid with adaptive protection schemes.

4. Supported Industrial Protocols

• IEC 61850: Native support for substation automation and interoperability.
• Modbus TCP/RTU: For SCADA integration and legacy device communication.
• DNP3.0: Widely used in power utilities for remote monitoring.
• PROFINET/EtherNet/IP: Real-time Ethernet protocols for industrial automation.
• OPC UA: Secure cross-platform data exchange for Industry 4.0 applications.
• CANopen: For motion control and embedded systems in harsh environments.

5. Extensibility & Scalability

• Modular Design:
  • Expandable via additional I/O modules (e.g., analog/digital expansion cards).
  • Supports up to 124 nodes with repeaters for large-scale deployments.
• Software Flexibility:
  • Programmable with IEC 61131-3 tools (ladder logic, structured text, function blocks).
  • OPC Server/Client capabilities for third-party system integration (e.g., SAP, MES).
• Redundancy Options:
  • Dual CPU, power supplies, and network interfaces for mission-critical applications.
  • Automatic failover with <10 ms switching time.
• Cloud Connectivity:
  • MQTT support for IIoT platforms (e.g., ABB Ability™, AWS IoT, Microsoft Azure).
• Third-Party Compatibility:
  • Open architecture allows integration with non-ABB hardware/software (e.g., Siemens, Schneider Electric).

6. Advantages

• All-in-One Solution: Reduces footprint by integrating protection, control, and monitoring.
• High Performance: Low-latency operation for real-time critical applications.
• Ease of Use: Intuitive configuration tools and pre-configured templates simplify deployment.
• Global Compliance: Certified to IEC, UL, and DNV GL standards for worldwide use.
• Cost Efficiency: Modular design minimizes upfront investment and operational costs.
