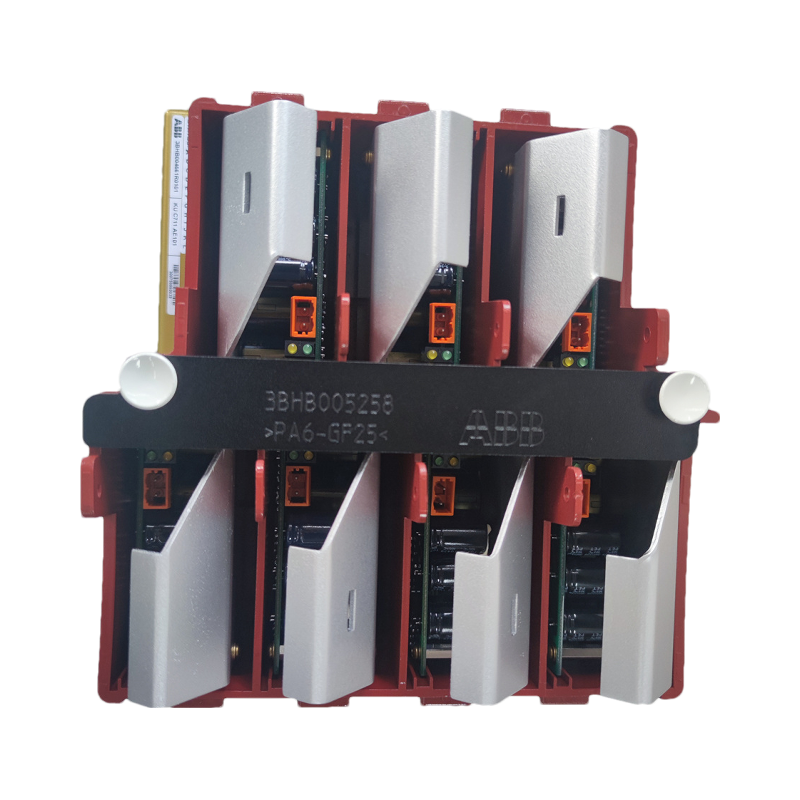

ABB 3BHB004661R0101

2. Functional Features

• Core Purpose:
  • Primary Role: Functions as a redundant communication module or excitation controller in industrial automation systems.
  • Redundancy: Dual Ethernet ports with Link Aggregation Control Protocol (LACP) support ensure fault tolerance and high availability.
• Control Capabilities:
  • Excitation Control: Precisely regulates generator励磁 (excitation) current for stable voltage/frequency output in power plants.
  • Multi-Mode Support:
    • Voltage Control: Maintains constant generator terminal voltage.
    • Current Control: Directly adjusts励磁 current for dynamic system responses.
  • Programmable Logic: Supports C/C++ for custom control sequences, enabling tailored automation workflows.
• Protection Mechanisms:
  • Overcurrent/Overvoltage/Undervoltage Protection: Safeguards equipment from electrical faults.
  • Fault Diagnosis: Real-time monitoring and alarm generation for rapid issue resolution.
• Data Handling:
  • Event Logging: Records operational events for auditing and troubleshooting.
  • High-Speed Communication: Dual 100 Mbps Ethernet channels for efficient data transfer.

3. Application Scenarios

• Power Generation:
  • Thermal Power Plants: Controls generator励磁 systems for stable voltage/frequency output.
  • Hydroelectric Plants: Regulates励磁 current in hydro generators.
  • Renewable Energy: Supports wind/solar farm generator control.
• Industrial Automation:
  • Process Control: Integrates with DCS systems (e.g., ABB Symphony Plus) for centralized monitoring.
  • Manufacturing: Manages motor drives and production line equipment.
• Critical Infrastructure:
  • Substations: Ensures reliable interval control in medium/high-voltage systems.
  • Oil & Gas: Monitors process variables in upstream/downstream operations.
  • Water Treatment: Automates pump stations and filtration systems.

4. Supported Industrial Protocols

• IEC 61850: Station-level communication for substation automation.
• Modbus RTU/TCP: Serial and Ethernet-based integration with SCADA/HMI systems.
• DNP3: Enables interoperability with legacy industrial devices.
• IEC 60870-5-103: Legacy protocol support for older systems.
• PROFINET/EtherNet/IP: Real-time data exchange in industrial Ethernet networks.
• HART-IP: Advanced diagnostic capabilities for smart devices (via UDP/TCP).

5. Extensibility & Scalability

• Modular Design:
  • Supports additional I/O modules, temperature sensors, and communication interfaces.
  • Each CPU accommodates up to 4 expansion modules for flexible configurations.
• System Integration:
  • Compatible with ABB Symphony Plus, 800xA, and third-party DCS/PLC systems.
  • Standardized interfaces (e.g., DCS, HMI) simplify integration.
• Redundancy Options:
  • Dual CPU and power supply configurations ensure high availability.
  • Hot-swapping minimizes downtime during maintenance.
• Software Customization:
  • Programmable via ABB Control Builder or System 800xA engineering tools.
  • Supports ladder logic (LD), structured text (STL), and function block (FBD) languages.

6. Advantages

• High Reliability: Industrial-grade components withstand vibrations, EMI, and temperature extremes.
• Flexibility: Adapts to diverse applications via modular design and programmable logic.
• Cost Efficiency: Reduces downtime and maintenance costs through predictive diagnostics.
• Global Support: Backed by ABB’s technical expertise and service network.
• Durability: Designed for long-term operation in harsh environments.
