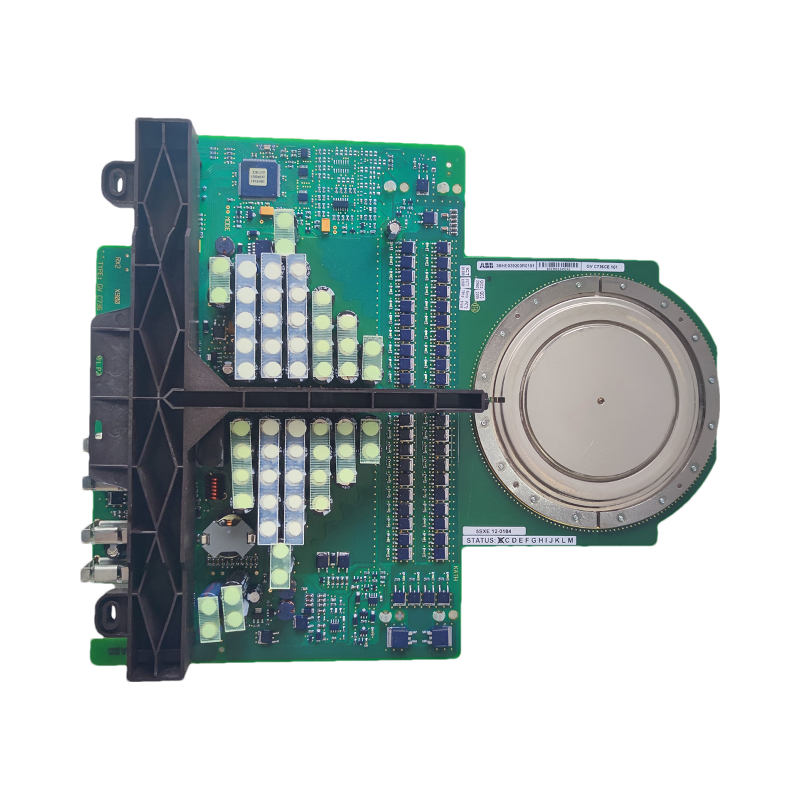

ABB 3BHB016120R0002

• Electrical Ratings:
  • Voltage Rating: Supports medium-voltage ranges (e.g., 1700 V to 4500 V, depending on configuration).
  • Current Rating: Handles high currents (e.g., 2 x 450 A to 2 x 1000 A, depending on module type).
  • Switching Frequency: Designed for high-frequency operation with minimal switching losses.
• Mechanical Specifications:
  • Package Type: Modular design with aluminum housing for efficient thermal management.
  • Cooling: Requires forced air or liquid cooling for optimal performance.
  • Dimensions: Standardized footprint for compatibility with ABB’s power electronics platforms.

2. Key Features

• High Reliability:
  • Built with robust materials and optimized thermal design for long-term operation in harsh industrial environments.
• Fast Switching Performance:
  • Enables efficient power conversion with minimal conduction and switching losses.
• Compact Design:
  • Reduces system footprint and simplifies installation.
• Integrated Protection:
  • Features over-temperature and over-current protection to enhance safety.
• Fiber-Optic Triggering:
  • Isolates the control circuitry from high-voltage sections, improving noise immunity and safety.
• Low Inductance Design:
  • Minimizes electromagnetic interference (EMI) and ensures stable operation.

3. Functional Applications

• Power Electronics Systems:
  • Used in AC/DC converters, inverters, and rectifiers for medium-voltage applications.
• Motor Control:
  • Enables precise control of high-power motors in industries such as steel, cement, and mining.
• Heating Systems:
  • Regulates power in industrial furnaces and heat treatment processes.
• Renewable Energy:
  • Supports solar and wind power conversion systems.
• High-Speed Transport:
  • Powers electric trains and trams with efficient energy conversion.
• Industrial Drives:
  • Used in variable-speed drives for pumps, fans, and compressors.

4. Supported Industrial Protocols

The 3BHB016120R0002 itself is a power semiconductor module and does not directly support industrial communication protocols. However, it is commonly integrated into ABB’s power electronics systems, which support the following protocols:

• Modbus TCP/IP: For seamless integration with SCADA systems and HMIs.
• PROFIBUS DP/PROFINET: Enables real-time data exchange in high-speed industrial networks.
• Ethernet/IP: Supports high-speed networking for data-intensive operations.
• IEC 61850: For substation automation and power grid applications.

5. Extensibility & Scalability

• Modular Design:
  • The 3BHB016120R0002 can be easily integrated into larger power electronics systems with additional modules for increased capacity.
• Parallel Operation:
  • Multiple IGCT modules can be connected in parallel to handle higher power levels.
• Scalable Control Systems:
  • Compatible with ABB’s advanced control platforms, allowing for easy upgrades and expansion.
• Future-Ready Integration:
  • Supports Industry 4.0 and IoT technologies for predictive maintenance and adaptive control.
• Redundancy Support:
  • Optional redundant configurations enhance system reliability and uptime.

6. Advantages

• Improved System Efficiency:
  • Low conduction and switching losses reduce energy consumption.
• Enhanced Reliability:
  • Robust design minimizes downtime and maintenance costs.
• Flexible Application:
  • Suitable for a wide range of industrial and power system applications.
• Global Support:
  • Backed by ABB’s worldwide service network and expertise.
