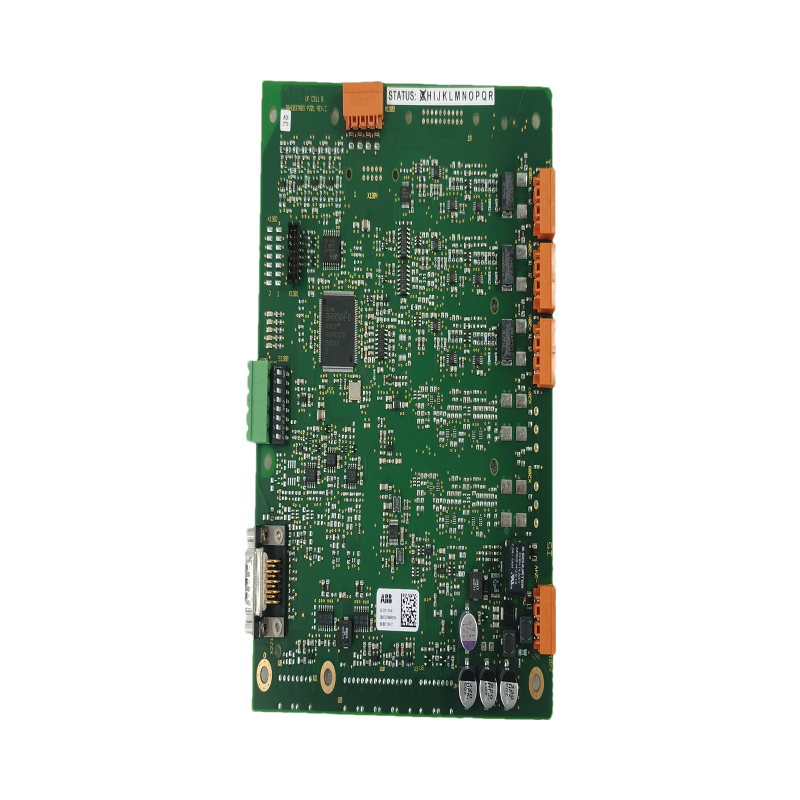

ABB 3BHE037864R0104

• I/O Capacity: Supports up to 12 fieldbus modules for flexible expansion.
• Power Supply: 24 V DC (19.2–36 V DC range) with DC1500V voltage isolation and reverse polarity protection.
• Operating Temperature: -10°C to +70°C (wide-temperature variant available: -40°C to +85°C).
• Relative Humidity: ≤90% (non-condensing).
• Dimensions: 132 mm × 105 mm × 52 mm.
• Weight: 800 g.
• Mounting: 35 mm DIN rail installation.
• Protection Class: IP30 (dust and splash resistance).

2. Functional Features

• High Reliability:
  • Designed for 24/7 operation in harsh industrial environments.
  • Robust aluminum housing with wave-pattern reinforcement for durability.
• Redundancy Support:
  • Dual Ethernet ports and optional CPU redundancy ensure fault tolerance.
  • Hot backup functionality for seamless controller switching.
• Advanced Programming:
  • Supports IEC 61131-3 languages (Ladder Logic, Structured Text, Function Block Diagram).
  • CFC/SFC programming for sequential control workflows.
  • Compatible with ABB’s Control Builder M and AC 800M development environments.
• Security:
  • Built-in encryption and authentication for network communications.
  • Role-based access control (RBAC) for operator privileges.
• Diagnostics:
  • Real-time monitoring of voltage, current, and device status.
  • Predictive maintenance alerts via integrated logging tools.
• Alarm Management:
  • Time-stamped alarm messages for accurate event tracking.
  • Supports alarm lists and event logs for system audits.
• Low Power Consumption:
  • Typical power consumption <4W, reducing energy costs.

3. Application Scenarios

• Industrial Automation:
  • Controls motors, pumps, and conveyors in manufacturing lines.
  • Manages robotic arms in automotive assembly plants.
• Process Industries:
  • Regulates chemical reactions, distillation columns, and boiler systems.
• Energy Management:
  • Optimizes power distribution in microgrids and renewable energy systems (e.g., solar inverters, wind turbines).
• Building Automation:
  • Manages HVAC, lighting, and security systems in smart buildings.
• Transportation:
  • Controls traffic signals, railway switching systems, and port automation equipment.
• Marine & Offshore:
  • Stabilizes power systems on ships and oil rigs under dynamic conditions.

4. Supported Industrial Protocols

• Ethernet/IP: For integration with Rockwell Automation and other Ethernet-enabled devices.
• PROFIBUS DP: Connects to Siemens and other PROFIBUS-compatible field devices.
• Modbus RTU/TCP: Universal protocol for SCADA and PLC integration.
• CANopen/J1939: Used in mobile machinery (e.g., agricultural vehicles, construction equipment).
• OPC UA: Enables secure cross-platform data exchange with IT systems.
• MasterBus 300, COMLI, Siemens 3964R: For legacy system compatibility.

5. Extensibility & Scalability

• Modular Design:
  • Fieldbus modules can be added or replaced without disrupting operations.
  • Supports up to 12 I/O modules per controller for customized configurations.
• Software Flexibility:
  • CODESYS-based programming tools simplify logic development and debugging.
  • Firmware updates via Ethernet or USB without hardware replacement.
• Redundancy Expansion:
  • Dual-CPU configurations and redundant power supplies enhance system availability.
• Cloud Integration:
  • OPC UA and MQTT support enable seamless connectivity to IIoT platforms (e.g., ABB Ability™).
• Third-Party Integration:
  • Open architecture allows integration with third-party software and hardware.

6. Advantages

• High Performance:
  • Low-latency processing for real-time control loops.
• Ease of Use:
  • Intuitive HMI and drag-and-drop programming reduce setup time.
• Global Compliance:
  • Certified to IEC, UL, and DNV standards for worldwide deployment.
• Future-Proof:
  • Regular firmware updates and protocol support ensure long-term relevance.
• Environmental Resistance:
  • Wide operating temperature range and IP30 protection class make it suitable for harsh environments.
