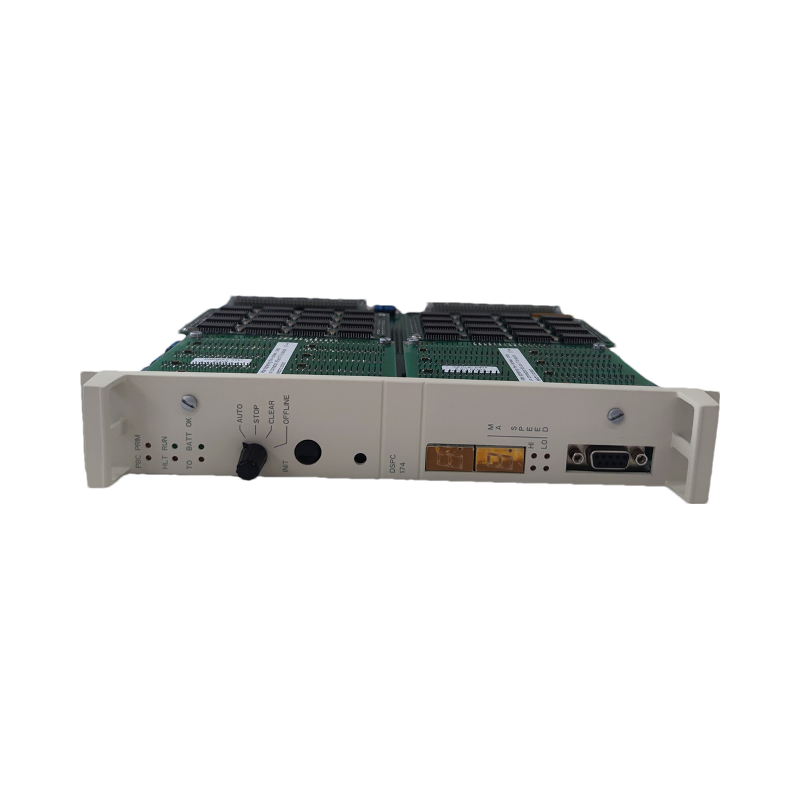

ABB 3BSE005461R1

• Communication Interfaces:
  • Ethernet: Dual 10/100 Mbps ports for redundancy and high-speed networking.
  • Serial Ports: RS-232 and RS-485 for legacy device integration.
  • Fieldbus Support: Modbus, PROFIBUS, and DeviceNet for distributed I/O connectivity.
• I/O Points:
  • Digital Inputs (DI): 16 channels for connecting switches or sensors.
  • Digital Outputs (DO): 16 channels for controlling actuators or relays.
  • Analog Inputs (AI): 4 channels for monitoring voltage or current signals.
  • Analog Outputs (AO): 4 channels for precise control of valves or motors.
• Power Supply: 24 V DC (19.2–30 V DC range) for stable operation in industrial environments.
• Operating Temperature: -20°C to +60°C (wide-temperature variant available for extreme conditions).
• Dimensions: 120 mm × 80 mm × 25 mm for compact DIN rail mounting.
• Weight: Lightweight design for easy integration into control cabinets.
• Enclosure Rating: IP20 for basic dust and splash protection.

2. Functional Features

• Compact Design: Space-saving form factor simplifies installation and maintenance.
• High-Performance Processing: Fast data handling and precise control for complex automation tasks.
• Modular Expansion: Supports additional I/O modules and fieldbus interfaces for scalable system configurations.
• Multi-Interface Support: Analog and digital I/O enable seamless connection to sensors, actuators, and legacy equipment.
• User-Friendly Programming: Intuitive interface and multiple programming options (e.g., ladder logic, structured text) streamline development.
• High Reliability: Robust construction with high-quality components ensures long-term stability and minimal downtime.
• Easy Maintenance: Modular design allows quick component replacement and firmware updates via Ethernet or USB.

3. Application Scenarios

• Industrial Automation:
  • Controls motors, pumps, and conveyors in manufacturing lines.
  • Manages robotic arms and CNC machines in automotive and machinery production.
• Energy Management:
  • Monitors and regulates power distribution in microgrids and renewable energy systems (e.g., solar inverters, wind turbines).
• Process Control:
  • Optimizes chemical reactions, distillation columns, and boiler systems in the chemical and petrochemical industries.
• Building Automation:
  • Integrates HVAC, lighting, and security systems in smart buildings.
• Transportation:
  • Controls traffic signals, railway switching systems, and port automation equipment.
• Electric Vehicle Infrastructure:
  • Manages AC and DC fast chargers for electric vehicles, supporting the transition to sustainable mobility.

4. Supported Industrial Protocols

• Modbus: Universal protocol for SCADA and PLC integration.
• PROFIBUS DP: Connects to Siemens and other PROFIBUS-compatible field devices.
• DeviceNet: Facilitates communication with industrial sensors and actuators.
• Ethernet/IP: Enables integration with Rockwell Automation and other Ethernet-enabled devices.
• OPC UA: Provides secure cross-platform data exchange with IT systems for Industry 4.0 applications.

5. Extensibility & Scalability

• Modular Design: Users can add or replace I/O modules and fieldbus interfaces without disrupting operations, ensuring adaptability to evolving requirements.
• Software Flexibility: CODESYS-based programming tools simplify logic development and debugging, while firmware updates via Ethernet or USB extend functionality without hardware changes.
• Redundancy Support: Dual Ethernet ports and optional CPU redundancy enhance fault tolerance for mission-critical applications.
• Cloud Integration: OPC UA and MQTT support enable seamless connectivity to IIoT platforms (e.g., ABB Ability™) for remote monitoring and predictive maintenance.
• Third-Party Compatibility: Open architecture allows integration with third-party software and hardware, protecting long-term investment.

6. Advantages

• Performance: Low-latency processing for real-time control loops.
• Ease of Use: Intuitive HMI and drag-and-drop programming reduce setup time.
• Global Compliance: Certified to IEC, UL, and DNV standards for worldwide deployment.
• Future-Proof: Regular firmware updates and protocol support ensure long-term relevance.
• Cost Efficiency: Compact design and modular expansion minimize initial investment and operational costs.
