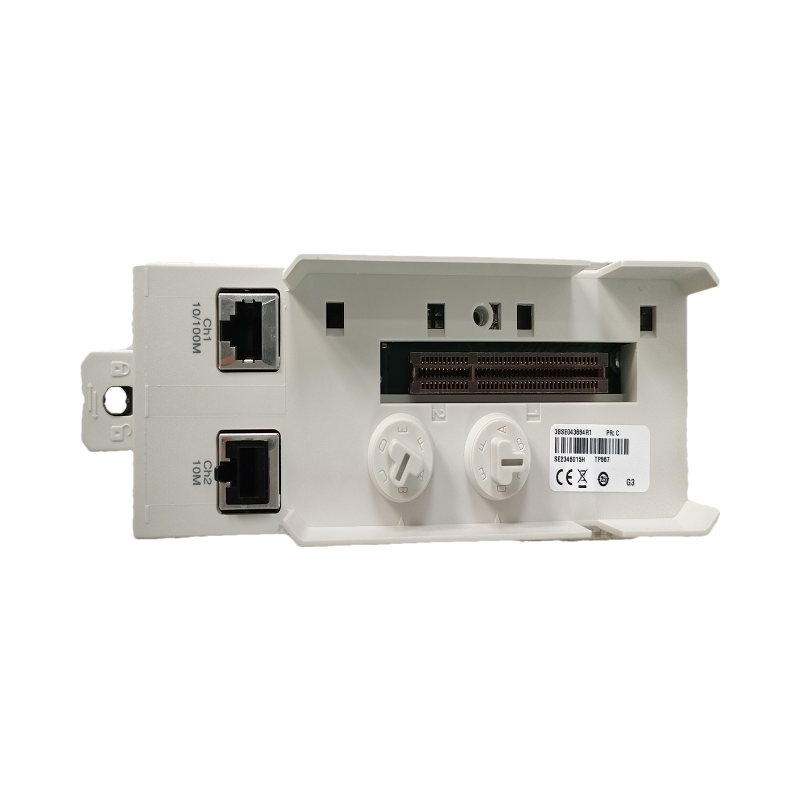

ABB 3BSE043660R1

Technical Specifications

1. Protocol Support:
   • Modbus TCP: An open industrial standard combining Modbus RTU with Ethernet and TCP/IP protocols (OSI Layer 7).
   • Role Flexibility: Configurable as a master or slave device.
2. Interfaces and Channels:
   • Dual Ethernet Channels:
     • Channel 1: 100 Mbps full-duplex.
     • Channel 2: 10 Mbps half-duplex.
   • Device Capacity: Supports up to 70 slave devices and 8 master devices (combined across both channels).
3. Power and Environment:
   • Power Supply: 24 V DC via CEX-Bus, with integrated DC/DC converter.
   • Operating Temperature: Up to 55°C.
   • Protection Class: IP20 (EN60529/IEC 529).
   • Hazardous Area Certifications: UL 60079-15, cULus Class 1 Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X.
4. Physical Dimensions:
   • Size: 185 mm (height) × 59 mm (width) × 127.5 mm (depth).
   • Weight: 700 grams (including baseplate).

Functional Features

1. Reliability and Redundancy:
   • Hot-Swappable: Allows replacement without system shutdown.
   • Redundancy Support: Enables seamless failover in critical applications.
2. Integration and Configuration:
   • Protocol Compatibility: Standard industrial interfaces for easy integration with PLCs, DCS, and SCADA systems.
   • Flexible Configuration: Customizable settings for diverse control requirements.
3. Diagnostics and Management:
   • LED Indicators: Simplify real-time status monitoring.
   • Self-Diagnostic Functions: Detect faults and generate alerts for proactive maintenance.
4. Performance:
   • High-Speed Data Handling: Optimized for real-time communication in demanding industrial environments.

Application Scenarios

1. Process Industries:
   • Chemical, Petrochemical, and Pharmaceutical Plants: Enables communication between controllers and field devices (e.g., sensors, actuators).
   • Power Generation: Automates power plant and substation systems.
2. Manufacturing:
   • Automotive and Metalworking: Integrates with PLCs for production line control.
   • Paper and Cement Industries: Supports complex process automation.
3. Infrastructure:
   • Water Treatment Facilities: Monitors and controls pumping stations and filtration systems.
   • Building Automation: Manages HVAC and energy systems in commercial buildings.
4. Data Acquisition and Monitoring:
   • SCADA Systems: Transmits real-time data to centralized monitoring platforms.
   • Remote Operations: Facilitates remote access and control for distributed assets.

Market Positioning and Availability

• Target Use Cases: Mid-to-high-end industrial automation requiring robust, scalable communication.
• Status: Listed as a legacy product by ABB, but available through specialized distributors (e.g., KENAWEI Electronics).
