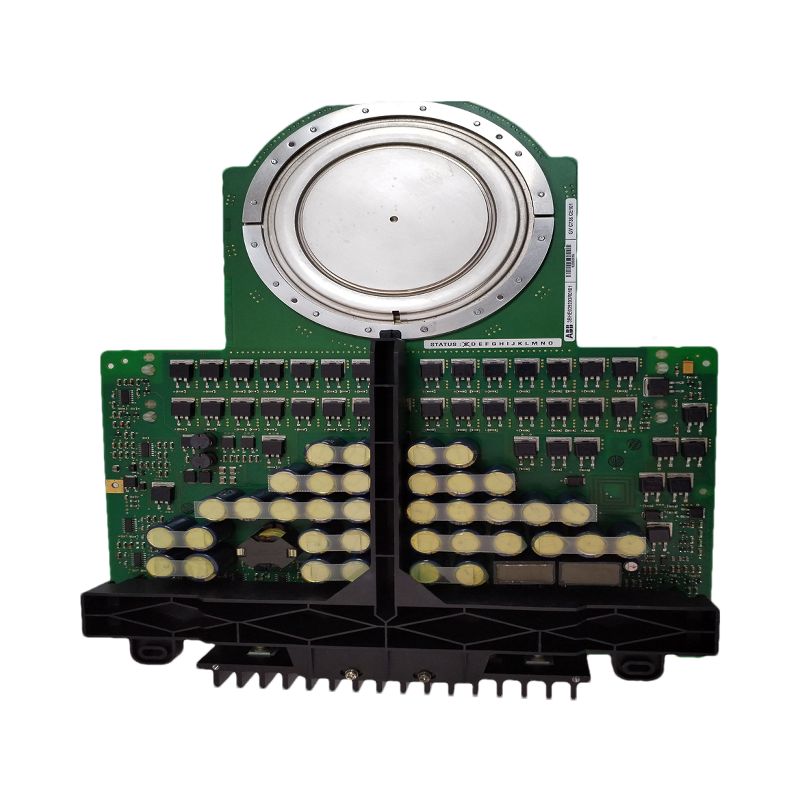

ABB 5SHX1960L0006

• Electrical Ratings:
  • Rated Current: High current-carrying capacity (exact value depends on configuration).
  • Blocking Voltage: High voltage rating suitable for medium-voltage applications (e.g., 2.3 kV to 6.9 kV).
  • Switching Frequency: High switching speed for efficient power conversion.
• Mechanical Specifications:
  • Package Type: Modular design for easy integration into power electronic systems.
  • Cooling: Typically requires forced air or liquid cooling for thermal management.
  • Dimensions: Standardized footprint for compatibility with ABB’s power electronics platforms.

2. Key Features

• High Reliability:
  • Designed for demanding industrial environments with robust construction and high-quality materials.
• Fast Switching Performance:
  • Enables efficient power conversion with minimal switching losses.
• Compact Design:
  • Reduces system footprint and simplifies installation.
• Low Conduction Losses:
  • Improves overall system efficiency and reduces energy consumption.
• Integrated Protection:
  • Built-in features such as over-temperature and over-current protection enhance safety.
• Fiber-Optic Triggering:
  • Isolates the control circuitry from high-voltage sections, improving noise immunity and safety.

3. Functional Applications

• Power Electronics Systems:
  • Used in AC/DC converters, inverters, and rectifiers for medium-voltage applications.
• Motor Control:
  • Enables precise control of high-power motors in industries such as steel, cement, and mining.
• Heating Systems:
  • Controls electric heating elements in industrial furnaces and heat treatment processes.
• Lighting Systems:
  • Manages high-intensity lighting systems in large-scale facilities.
• Power Scheduling and Distribution:
  • Facilitates efficient power flow in grid-tied and off-grid systems.
• Electric Vehicle Chargers:
  • Supports fast-charging infrastructure with high power density.
• Industrial Processing Equipment:
  • Powers machinery in sectors like paper, textiles, and plastics.

4. Supported Industrial Protocols

The 5SHX1960L0006 itself does not directly support industrial communication protocols, as it is a power semiconductor device. However, it is commonly integrated into ABB’s power electronics systems, which support the following protocols:

• Modbus TCP/IP: For seamless integration with SCADA systems and HMIs.
• PROFIBUS DP/PROFINET: Enables real-time data exchange in high-speed industrial networks.
• Ethernet/IP: Supports high-speed networking for data-intensive operations.
• IEC 61850: For substation automation and power grid applications.

5. Extensibility & Scalability

• Modular Design:
  • The 5SHX1960L0006 can be easily integrated into larger power electronics systems with additional modules for increased capacity.
• Parallel Operation:
  • Multiple IGCT modules can be connected in parallel to handle higher power levels.
• Scalable Control Systems:
  • Compatible with ABB’s advanced control platforms, allowing for easy upgrades and expansion.
• Future-Ready Integration:
  • Supports Industry 4.0 and IoT technologies for predictive maintenance and adaptive control.
• Redundancy Support:
  • Optional redundant configurations enhance system reliability and uptime.

6. Advantages

• Improved System Efficiency:
  • Low conduction and switching losses reduce energy consumption.
• Enhanced Reliability:
  • Robust design minimizes downtime and maintenance costs.
• Flexible Application:
  • Suitable for a wide range of industrial and power system applications.
• Global Support:
  • Backed by ABB’s worldwide service network and expertise.
