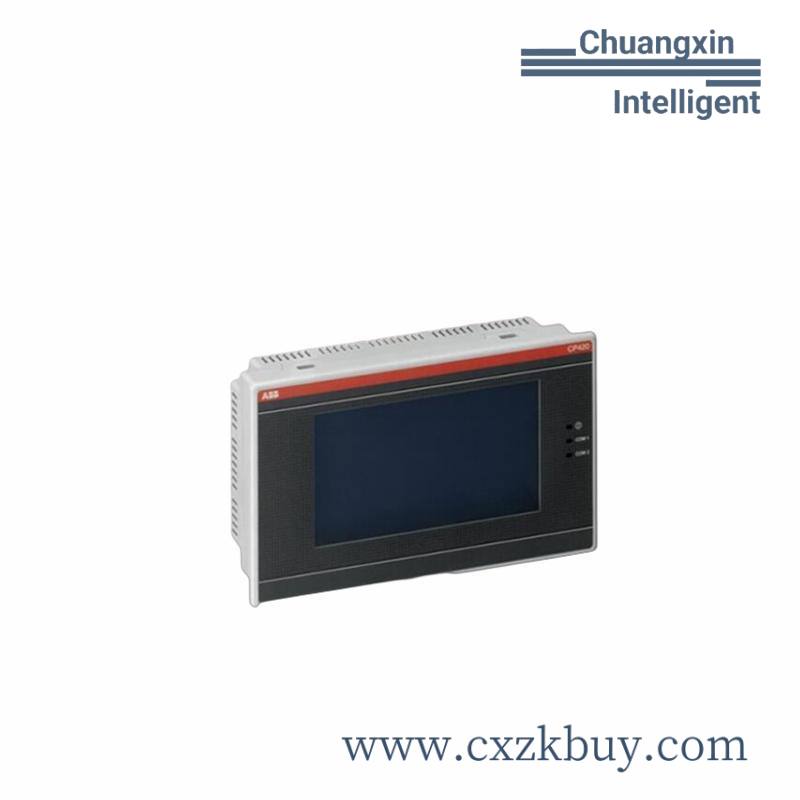

ABB CP420B Industrial Control Panel with Touchscreen Display
The ABB CP420B Controller Panel is a high-performance industrial control module designed for robust operations in demanding environments. It features advanced diagnostic capabilities, secure operation modes, and easy setup processes. Ideal for use in manufacturing facilities and process automation systems.
Front Panel Dimensions:170.3 x 102.6 x 6.0 mm
Mounting Depth:45.3 mm
Cutout Size:160.7 x 93.0 mm
Sealing Rating:IP65/NEMA 4X (Indoor Use Only)
Weight:0.47 kg
Communication Ports COM1:9-pin female connector: RS232/RS485
Communication Ports COM2:9-pin female connector: RS422/RS485
Flash Memory:4 MB
RAM:512 KB
CPU Type:32-bit RISC
Real Time Clock:Yes (with rechargeable lithium battery)
Display Type:Monochrome STN LCD display, 240×128 pixels, CCFL backlight life: approximately 50,000 hours at 25°C
Display Active Area:111 x 61 mm
Touch Screen:Analog
Power Supply:24V DC ± 15%, <12 W
Operating Temperature:0°C ~ +50°C
Storage Temperature:-10°C ~ +60°C
Relative Humidity:20-90% RH non-condensing
Shock Resistance:Displacement: 0.5 mm, 10-55 Hz, 2 hours per axis (X, Y, Z)
Vibration Resistance:10G, 11 ms each, 3 times per axis (X, Y, Z)
CE Compliance:EN61000-6-4, EN61000-6-2
Cooling Method:Natural cooling
The ABB CP420B is an industrial-grade control panel designed for reliable operation in harsh environments.
Featuring a durable design with IP65/NEMA 4X sealing, it is built to withstand vibration and shock while offering a wide operating temperature range from 0°C to 50°C.
The front panel is equipped with a monochrome STN LCD screen capable of displaying 30×16 characters in 8×8 size, ensuring clear visibility even in low-light conditions.
Its analog touchscreen provides intuitive user interaction, while RS232/RS485 and RS422/RS485 interfaces support versatile connectivity options.
With a rechargeable real-time clock and 4 MB of flash memory, the CP420B is an indispensable tool for process control and monitoring.
