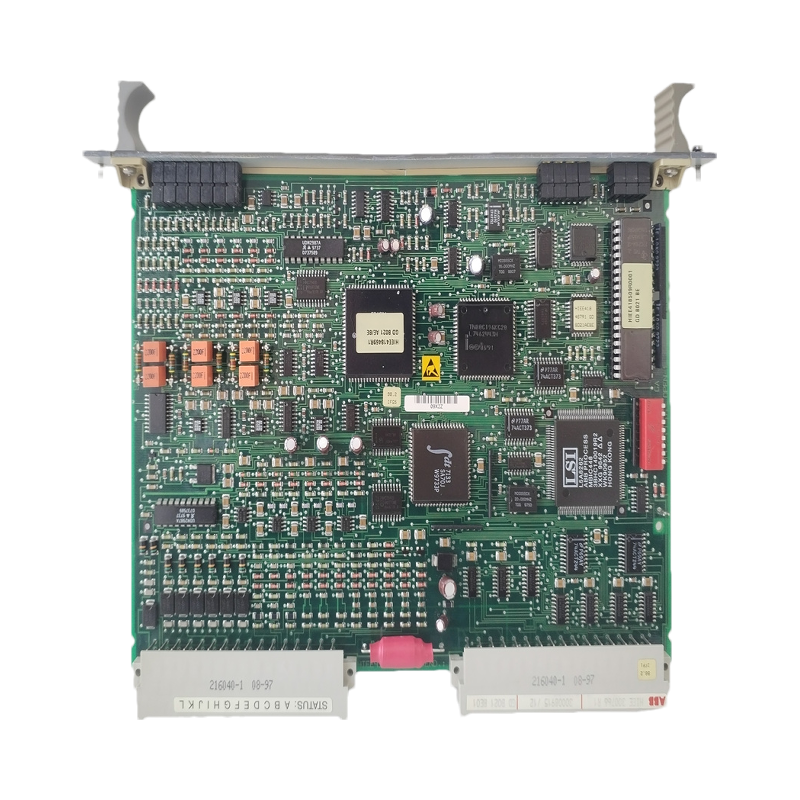

ABB HIEE300766R0001

• Current Ratings:
  • Rated Current: 6 A, enabling control of moderate-load devices.
• Mechanical Durability:
  • Mechanical Life: 10 million operations, ensuring long-term reliability under frequent switching.
  • Electrical Life: 100,000 operations, suitable for demanding industrial applications.
• Physical Dimensions: 110 mm × 20 mm × 35 mm, compact design for space-efficient installation.
• Weight: Approximately 200 grams, facilitating easy integration into existing systems.
• Operating Temperature: -40°C to +85°C, capable of withstanding extreme environmental conditions.
• Protection: IP20 (EN 60529), suitable for indoor use in controlled industrial settings.

2. Functional Features

• Signal Processing and Control:
  • Designed for high-speed signal processing and precise control output in PLC systems.
  • Enhances system flexibility and response speed, critical for real-time automation tasks.
• Synchronization Capabilities:
  • Primarily used as a synchronizer module for generator control in power systems.
  • Automatically monitors voltage and frequency, ensuring safe and reliable grid connection during generator startup, shutdown, and load changes.
• Protection Mechanisms:
  • Equipped with multiple synchronization protection functions to safeguard generators and power systems from faults and damage.
• User Interface and Monitoring:
  • Features a user-friendly interface for intuitive configuration and real-time monitoring of synchronization processes.
  • Provides comprehensive system status information for operators.
• Programmability and Flexibility:
  • Supports custom parameter settings and logic programming to meet specific application requirements.
  • Enables tailored control strategies for diverse industrial automation needs.
• High Reliability:
  • Built with high-quality components and robust hardware design to ensure stable performance in harsh conditions.
  • Resistant to temperature variations, vibrations, and electrical interference.

3. Application Scenarios

• Power Generation:
  • Used in thermal, hydro, and renewable energy plants for generator synchronization, protection, and control.
  • Ensures safe and efficient grid connection during black starts and islanding operations.
• Industrial Automation:
  • Integral to production line control, logistics systems, and robotics for precise and adaptive operation.
• Energy Infrastructure:
  • Applied in substations and power distribution networks for equipment monitoring and synchronization.
• Transportation:
  • Used in railway power systems and traction substations for stable and reliable power supply.
• Door Control Systems:
  • Some variants function as door control units, managing access in buildings, industrial facilities, schools, hospitals, and residential complexes.
  • Features include card reader interfaces, control outputs for locks, and Wiegand interfaces for seamless integration with existing access systems.

4. Supported Industrial Protocols

• Modbus:
  • Supports Modbus RTU/TCP for remote communication and device interrogation via RS485 or Ethernet.
• Ethernet/IP:
  • Enables seamless integration with devices from different manufacturers, facilitating industrial automation standards.
• PROFINET:
  • Provides real-time communication in industrial Ethernet networks for high-speed data exchange.
• OPC UA:
  • Offers secure, cross-platform data exchange for Industry 4.0 applications, enabling integration with cloud platforms (e.g., ABB Ability™, AWS IoT, Microsoft Azure).
• CAN:
  • Supports Controller Area Network (CAN) for reliable communication in distributed control systems.

5. Extensibility & Scalability

• Modular Design:
  • Supports seamless integration with additional I/O modules for expanded functionality.
  • Allows customization based on specific application requirements.
• System Integration:
  • Compatible with a wide range of ABB and third-party devices, facilitating easy system expansion.
  • Each CPU supports up to 4 communication expansion modules, enabling flexible network configurations.
• Redundancy Options:
  • Dual CPU and power supply options ensure high availability and fault tolerance in critical applications.
• Cloud Connectivity:
  • MQTT support enables integration with IIoT platforms for remote monitoring, predictive maintenance, and data analytics.
• Distributed I/O Capability:
  • Supports distributed I/O subsystems for decentralized control architectures, reducing wiring complexity and improving system responsiveness.

6. Advantages

• High Performance:
  • Advanced control algorithms and intelligent functions ensure precise and accurate parameter control.
• Flexibility:
  • Programmable logic and configurable parameters adapt to diverse industrial automation needs.
• Cost Efficiency:
  • Reduces operational costs through energy savings, extended equipment lifespan, and minimized downtime.
• Global Support:
  • Backed by ABB’s extensive technical expertise and global service network for prompt assistance and maintenance.
• Durability:
  • Built to withstand harsh industrial conditions, ensuring long-term reliability and minimal maintenance requirements.
