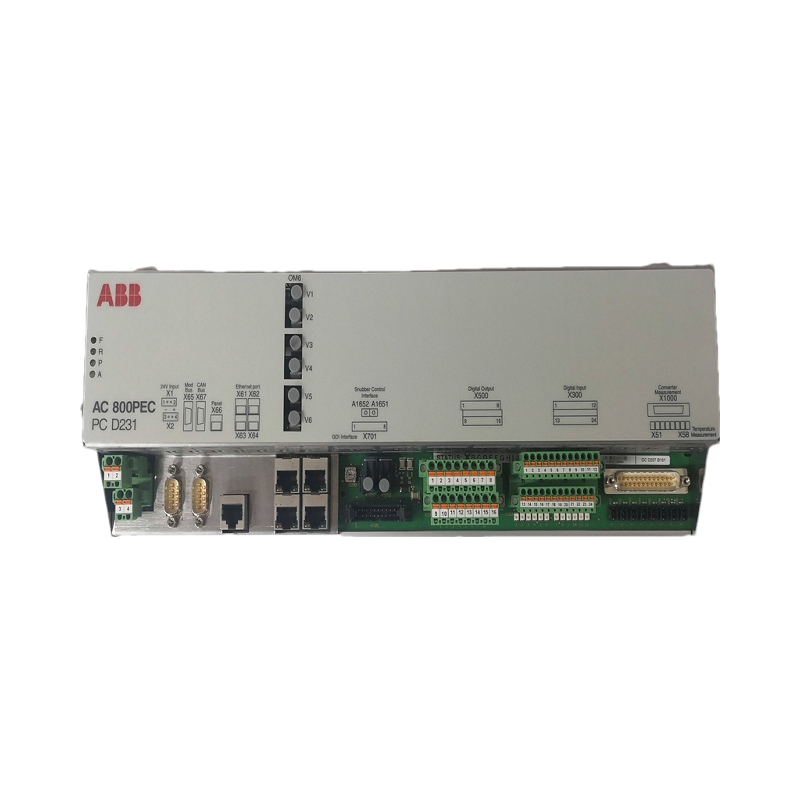

ABB PCD231B101

Technical Specifications

1. Power Supply:
   • Voltage Range: 24–250 V DC / 48–265 V AC, adaptable to diverse industrial power environments.
2. Environmental Conditions:
   • Operating Temperature: -40°C to +70°C, compliant with stringent industrial standards for extreme temperature resilience.
3. Protection Functions:
   • Supports overcurrent, undervoltage, overvoltage, and frequency protection.
   • Suitable for protecting transformers, generators, motors, and distribution lines.
4. Communication Capabilities:
   • Protocols: IEC 61850, Modbus, DNP3, enabling seamless integration into automation systems.
5. User Interface:
   • Graphical LCD display and keypad for local configuration and operation.
6. Modular Design:
   • Supports expansion modules for flexible adaptation to specific application requirements.

Functional Features

1. High-Precision Protection:
   • Delivers accurate power system protection to ensure safe equipment operation.
2. Flexible Communication:
   • Multi-protocol support for integration with diverse industrial systems.
3. User-Friendly Interface:
   • Graphical display and intuitive keypad simplify local setup and monitoring.
4. Modular Expandability:
   • Easily configurable with expansion modules to meet evolving industrial needs.

Application Scenarios

1. Power Transformer Protection:
   • Safeguards transformers against overcurrent, undervoltage, and overvoltage, ensuring stable operation.
2. Distribution Line Protection:
   • Protects distribution lines from faults like overcurrent and short circuits, enhancing power supply reliability.
3. Industrial Motor Protection:
   • Monitors and controls industrial motor parameters (e.g., current, voltage) to prevent damage.
4. Generator Protection:
   • Controls and protects generator excitation systems, maintaining stable voltage and current output.
5. Nuclear Power Plant Protection Systems:
   • Used in projects like the Daya Bay Nuclear Power Plant’s reactor protection system upgrade, improving equipment reliability and fault diagnostics.
6. Mine Hoist Monitoring:
   • Integrates with supervisory software to display real-time parameters (e.g., speed, hydraulic status) and enable automatic fault diagnosis and alarms.
7. Wind Turbine Control Systems:
   • Part of the Sinovel SL1500 wind turbine PLC localization project, addressing hardware compatibility and communication module challenges.
