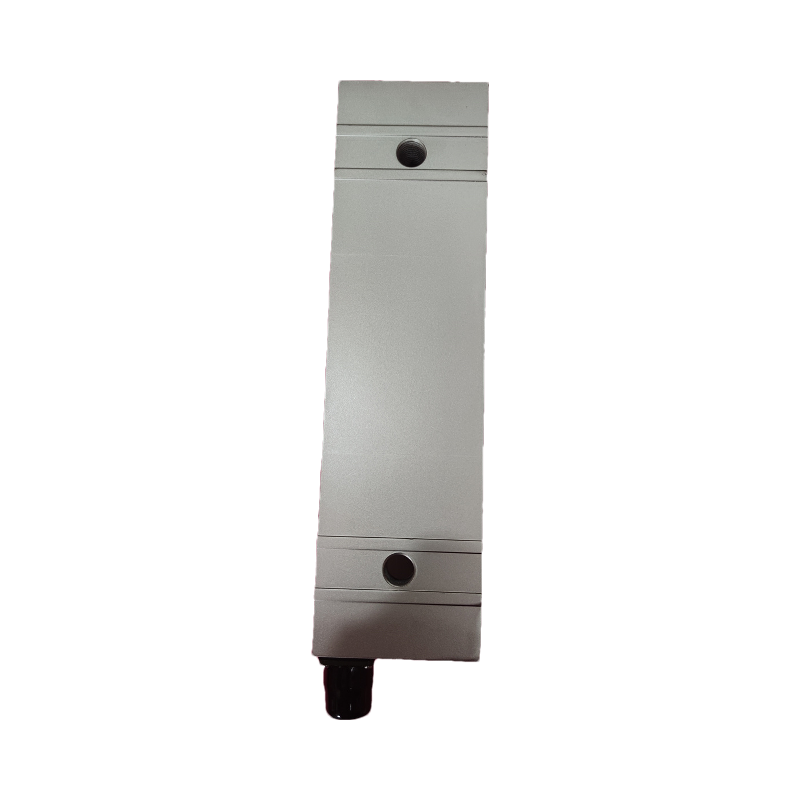

ABB PFTL101B 10KN

• Enclosure Rating: IP20 (basic protection against dust and accidental contact).
• Mechanical Design: Pillow-block structure with stainless steel components for durability in corrosive environments.
• Connection Type: Cylindrical plug connector for secure electrical interfacing.

2. Functional Features

• High Precision: Micro-displacement measurement technology ensures accurate tension control even under dynamic loads.
• Robust Construction: Stainless steel housing and reinforced mechanics withstand vibration, shock, and extreme temperatures.
• Modular Design: Supports horizontal tension measurement with easy integration into existing systems.
• Real-Time Monitoring: 4–20 mA output enables continuous data transmission to PLCs or HMI systems.
• Environmental Adaptability: Designed for acid-resistant applications (e.g., pickling lines) and high-humidity environments.
• Easy Maintenance: Field-replaceable components minimize downtime during repairs or calibrations.

3. Application Scenarios

• Metal Processing:
  • Tension control in acid-pickling lines, annealing furnaces, and galvanizing plants.
  • Monitoring strip tension during rolling, coating, or slitting operations.
• Paper & Pulp Industry:
  • Managing web tension in paper machines, coating lines, and rewinders.
• Textile & Film Production:
  • Precise tension regulation for synthetic fibers, films, or foils.
• General Industrial Automation:
  • Any application requiring reliable tension measurement in conveyors, elevators, or storage systems.

4. Supported Industrial Protocols

• Modbus RTU/TCP: Enables communication with PLCs, HMIs, and SCADA systems for data logging and remote control.
• Profibus-DP: Integrates with Siemens and other Profibus-compatible field devices for distributed I/O networks.
• Ethernet/IP: Supports Rockwell Automation ecosystems and high-speed industrial Ethernet networks.
• OPC UA: Provides secure cross-platform data exchange for Industry 4.0 applications (via gateway devices).

5. Extensibility & Scalability

• Modular Expansion:
  • Compatible with ABB’s range of tension controllers (e.g., PFEA111 series) for multi-zone tension management.
  • Supports additional I/O modules for integrating analog/digital sensors (e.g., temperature, speed).
• Software Flexibility:
  • CODESYS-based programming tools simplify logic development and debugging.
  • Firmware updates via Ethernet or USB enhance functionality without hardware changes.
• Redundancy Support:
  • Dual Ethernet ports and optional CPU redundancy improve fault tolerance in critical applications.
• Cloud Integration:
  • MQTT and OPC UA support enable connectivity to IIoT platforms (e.g., ABB Ability™) for predictive maintenance.
• Third-Party Compatibility:
  • Open architecture allows integration with non-ABB hardware/software, protecting long-term investment.

6. Advantages

• Performance: Low-latency signal processing ensures real-time tension control.
• Reliability: Stainless steel construction and IP20 rating guarantee long-term stability in harsh conditions.
• Ease of Use: Intuitive calibration tools and plug-and-play connectivity reduce setup time.
• Global Compliance: Certified to IEC, UL, and DNV standards for worldwide deployment.
• Cost Efficiency: Modular design lowers initial investment and operational costs.
