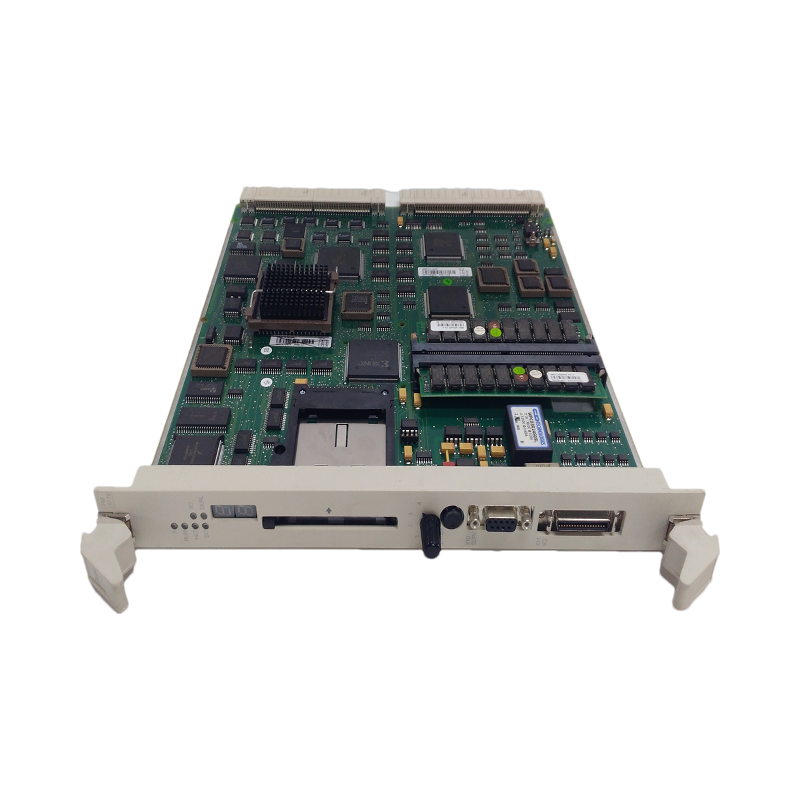

ABB PM511V08

Technical Specifications

1. Model and Series:
   • Model: PM511V08.
   • Product Code: 3BSE011180R1.
   • Series: ABB S800 I/O system.
2. Function:
   • Analog signal acquisition and transmission for industrial automation control systems.
3. Communication Interfaces:
   • Supports Profibus-DP fieldbus communication.
   • Equipped with digital input/output channels for connectivity with other devices.
4. Display and Operation:
   • Multilingual digital display and configuration keys.
   • 2×16-character display showing parameter sums, differential signals, or individual sensor readings.
5. Installation Options:
   • DIN-rail mounting or enclosed IP65-rated installation for harsh environments.
6. Power Supply:
   • Typically operates on 24 V DC, adhering to industrial power standards.

Functional Features

1. Analog Signal Processing:
   • Connects up to four load cells and provides six configurable analog outputs for web tension control or monitoring.
2. Gain Switching:
   • Enables gain switching for two different web paths via digital inputs or Profibus signals.
   • Supports remote gain scheduling or zero-point adjustment.
3. Self-Diagnostic Function:
   • Includes built-in self-diagnostics with status feedback via Profibus-DP.
4. Alarm and Detection:
   • Features four configurable digital outputs for alarms and level detection.
5. Expandability:
   • Combines up to three PFEA 113 units to handle segmented roll applications (e.g., winders) with up to 12 load cells.

Application Scenarios

1. Industrial Automation:
   • Widely used in printing, packaging, textiles, and metalworking for precise tension control during material processing.
2. Process Control:
   • Ensures stable material tension in rolling, papermaking, and plastic processing industries.
3. Harsh Environments:
   • IP65 protection makes it suitable for high-humidity, dusty, or other challenging industrial conditions.

Market Positioning and Availability

• Target Markets: Industries requiring precise tension control, including manufacturing, automation production lines, and factory equipment control.
• Supply Channels: Sold through ABB’s authorized distributors, offering technical support and after-sales service.
• Pricing: Varies based on configuration and supplier, aligning with industrial automation equipment market standards.
