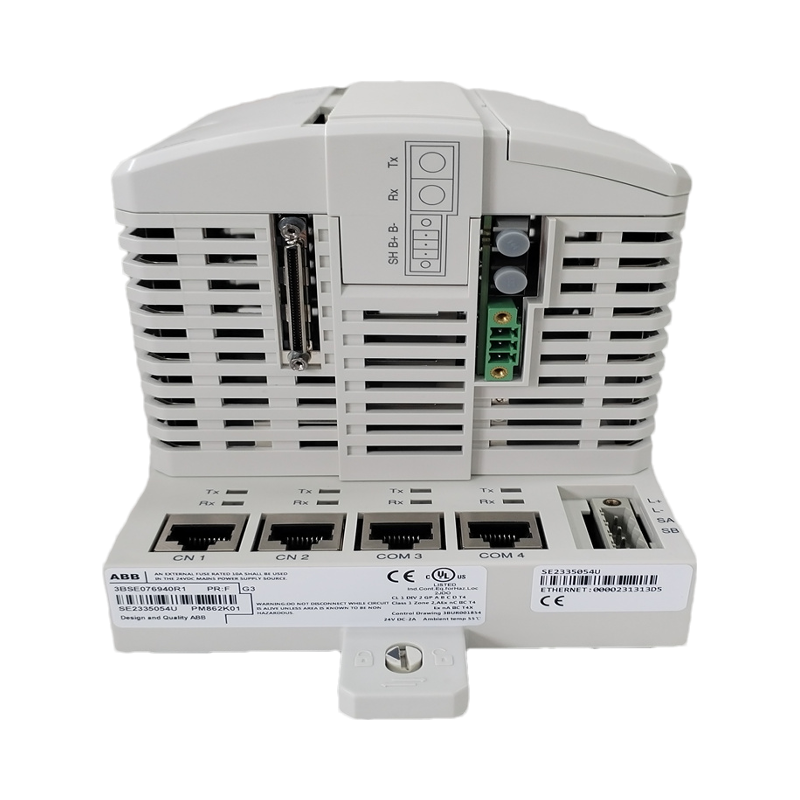

ABB PM862

Technical Specifications

1. Processor:
   • Dual-CPU redundant design with a 67 MHz MPC866 processor, ensuring high stability and fault tolerance.
   • Performance: 1,000 Boolean operations in 0.18 milliseconds.
2. Memory:
   • 32 MB RAM (23.522 MB usable for program code and data storage).
   • 4 MB Flash PROM for firmware storage.
3. Communication Interfaces:
   • Ethernet: Two RJ45 ports (CN1, CN2) supporting 10 Mbit/s communication.
   • Serial Ports: Two RS-232C ports (COM3 with modem control signals, COM4 isolated).
   • Protocols: Native support for Modbus TCP, Profibus DP, EtherNet/IP, and other industrial standards.
4. Power Supply:
   • 24 V DC (19.2–30 V DC range).
   • Power consumption: Typical 5.1 W, maximum 8.6 W.
5. Environmental Adaptability:
   • Operating temperature: -20°C to +55°C (storage: -40°C to +70°C).
   • Relative humidity: 5–95% (non-condensing).
   • Protection class: IP20 (IEC 60529/EN 60529).
6. Physical Dimensions:
   • Width: 119 mm, height: 186 mm, depth: 135 mm (including baseplate).
   • Weight: Approximately 1.2–2.9 kg (varies by model).

Functional Features

1. Redundancy and Reliability:
   • Supports CPU, CEX bus, communication interface, and I/O module redundancy for uninterrupted operation.
   • Hot-swappable modules minimize downtime during maintenance.
2. Modularity and Expandability:
   • Modular design allows flexible configuration and integration of diverse modules.
   • Compatible with CEX bus and ModuleBus for connecting I/O and communication modules.
3. Diagnostic and Maintenance:
   • LED indicators for real-time status monitoring.
   • Self-diagnostic functions for fault detection and early warning.
   • Built-in diagnostic tools simplify troubleshooting.
4. Programming and Integration:
   • Supports IEC 61131-3 programming standards (e.g., Ladder Diagram, Structured Text).
   • Compatible with ABB’s 800xA control system and third-party software for centralized management.

Application Scenarios

1. Industrial Automation:
   • Controls manufacturing lines, machinery, and complex processes in sectors such as automotive, electronics, and food processing.
2. Process Control:
   • Monitors and regulates parameters in chemical, petrochemical, oil and gas, and pharmaceutical industries.
3. Power Systems:
   • Automates substations, power plants, and energy distribution networks.
4. Water Treatment:
   • Manages pumping stations, filtration systems, and wastewater facilities.
5. Building Automation:
   • Optimizes HVAC, lighting, and security systems in commercial buildings.
6. Infrastructure:
   • Supports traffic signal control, elevator management, and parking systems.

Market Positioning and Availability

• Target Markets: Mid-to-large-scale industrial projects requiring high performance, scalability, and reliability.
• Availability: Sold through ABB’s official channels and authorized distributors, often with technical support and warranty options.
• Legacy Status: Some models (e.g., PM862K02) may be part of ABB’s legacy product lines but remain available through specialized suppliers.
