ABB PM864AK01 3BSE018161R1

Technical Specifications

1. Processor:
   • 96 MHz industrial-grade processor (PowerPC architecture) for real-time control and complex logic execution.
2. Memory:
   • 32 MB RAM (23.522 MB usable for program code and data).
   • 2 MB Flash PROM for firmware storage.
3. Interfaces:
   • Two Ethernet ports (RJ45, 10 Mbit/s).
   • Two serial ports (RS-232C).
   • CEX bus and ModuleBus for I/O and communication module expansion.
4. Power Supply:
   • 24 V DC (19.2–30 V DC range).
   • Power consumption: 6.9 W (typical), 11.4 W (maximum).
5. Environmental Adaptability:
   • Operating temperature: +5 to +55°C.
   • Storage temperature: -40 to +70°C.
   • Relative humidity: 5–95% (non-condensing).
6. Physical Dimensions:

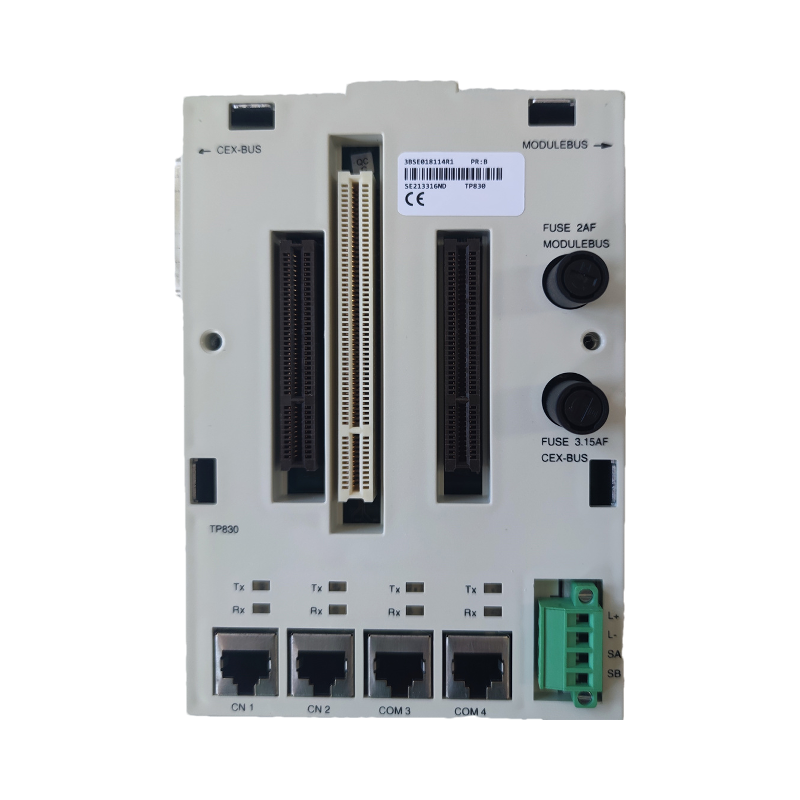

   • 196 mm (width) × 119 mm (height) × 135 mm (depth) including baseplate.
   • Weight: ~1.2 kg.

Functional Features

1. Redundancy Support:
   • CPU redundancy (requires additional hardware) for seamless failover in critical systems.
   • CEX bus and communication interface redundancy options.
2. Programming Flexibility:
   • Compliant with IEC 61131-3 standards, supporting Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD).
   • Integrated with ABB’s 800xA control system for streamlined configuration.
3. Communication Capabilities:
   • Native support for Profibus, Modbus, Ethernet/IP, and other industrial protocols.
   • Isolated serial ports for secure device integration.
4. Diagnostic and Maintenance:
   • LED indicators for real-time status monitoring.
   • Self-diagnostic functions to detect faults and generate alerts.
   • Hot-swappable modules to minimize downtime.
5. Data Integrity:
   • Built-in real-time clock and battery-backed memory (4943013-6) for data retention during power loss.

Application Scenarios

1. Process Industries:
   • Complex process control in chemical, petrochemical, pharmaceutical, and food/beverage sectors.
2. Power Sector:
   • Automation of power plants, substations, and renewable energy systems.
3. Manufacturing:
   • Production line control in automotive, metalworking, paper, and cement industries.
4. Water Treatment:
   • Monitoring and control of water treatment plants and wastewater facilities.
5. Building Automation:
   • HVAC control, lighting management, and energy optimization in commercial buildings.

Availability and Market Positioning

• Status: Listed as a discontinued spare part by ABB, but available through specialized distributors.
• Target Use Cases: Mid-to-high-end industrial automation requiring high reliability, scalability, and support for legacy systems.
