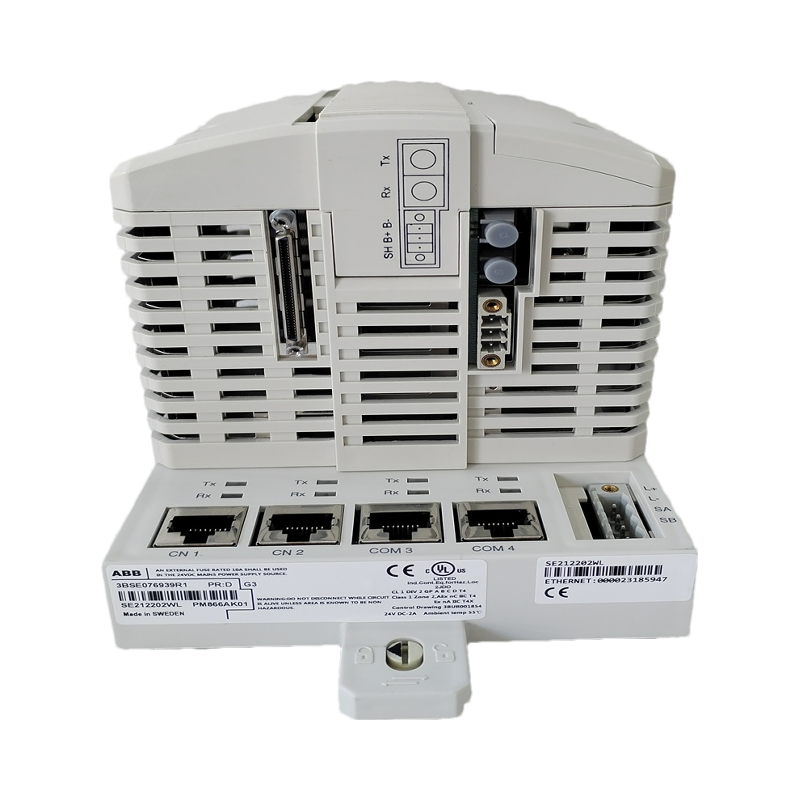

ABB PM866AK01

• Communication Interfaces:
  • Ethernet Ports: Two RJ45 Ethernet ports (CN1, CN2) supporting 10 Mbit/s (IEEE 802.3).
  • Serial Ports: Two RJ45 serial ports (COM3, COM4):
    • COM3: RS-232C port with modem control signals.
    • COM4: Isolated RS-232C port for connection to configuration tools.
• Power Supply: 24 V DC (19.2–30 V DC).
• Power Consumption:
  • Typical: 210 mA at +24 V.
  • Maximum: 360 mA at +24 V.
• Operating Temperature: +5°C to +55°C (operational), -40°C to +70°C (storage).
• Environmental Protection: IP20 (requires no additional enclosure).
• Certifications:
  • EMC Compliance: Full EMC certification for industrial use.
  • Safety Standards: ISA Secure certified, UL 61010-1, UL 61010-2-201, and others.

2. Functional Features

• High Reliability:
  • Designed for demanding industrial environments with robust construction and fault tolerance.
• CPU Redundancy Support:
  • Enhances system availability by supporting redundant CPU, CEX-Bus, communication interfaces, and S800 I/O.
• Modular Design:
  • Allows step-by-step expansion for scalable system integration.
• Easy Installation:
  • Features a unique slide-and-lock mechanism for simple DIN rail mounting and removal.
• Real-Time Clock:
  • Built-in real-time clock for accurate time-stamping and scheduling.
• LED Indicators:
  • Provides visual status feedback for operation and diagnostics.
• CompactFlash Interface:
  • Supports storage expansion for additional application data.
• Secure Communication:
  • Built-in redundant Ethernet ports for reliable data exchange.

3. Application Scenarios

• Industrial Automation:
  • Used in manufacturing plants for process control, machine automation, and sequencing.
• Power Generation and Distribution:
  • Manages power transmission and distribution systems with high reliability.
• Energy Management:
  • Monitors and controls energy consumption in smart grids and renewable energy systems.
• Environmental Monitoring:
  • Collects and processes data from sensors for real-time environmental tracking.
• Water and Wastewater Treatment:
  • Controls pumping stations, filtration systems, and chemical dosing processes.
• Oil and Gas:
  • Ensures safe and efficient operation in upstream and downstream applications.
• Transportation:
  • Manages signaling and control systems in railways and metro networks.

4. Supported Industrial Protocols

The PM866AK01 supports a wide range of industrial communication protocols for seamless integration with existing systems:

• Ethernet/IP: For high-speed networking and data-intensive operations.
• PROFINET: Enables real-time data exchange in high-performance industrial networks.
• Modbus TCP/IP: For communication with SCADA systems and HMIs.
• Other Protocols: Compatible with additional protocols as required by specific applications.

5. Extensibility & Scalability

• Modular Architecture:
  • The controller can be expanded with additional I/O modules, communication interfaces, and field devices.
• CEX-Bus Expansion:
  • Uses a segmented CEX-Bus with BC810/BC820 modules for flexible system configuration.
• Parallel Operation:
  • Multiple controllers can be operated in parallel to handle increased system loads.
• Redundancy Support:
  • Optional redundant configurations enhance system reliability and uptime.
• Scalable Performance:
  • Adapts to growing system requirements with modular expansion options.
• Software Configuration:
  • Supports programming with ABB’s 800xA Control Builder for customized control logic and parameters.

6. Advantages

• High Performance:
  • Fast processing capabilities ensure efficient control of complex automation tasks.
• Reliability:
  • Designed for continuous operation in harsh industrial environments with minimal downtime.
• Flexibility:
  • Supports a wide range of protocols and expansion options for diverse applications.
• Ease of Use:
  • Simplified installation and configuration with intuitive programming tools.
• Global Support:
  • Backed by ABB’s worldwide service network and expertise.
