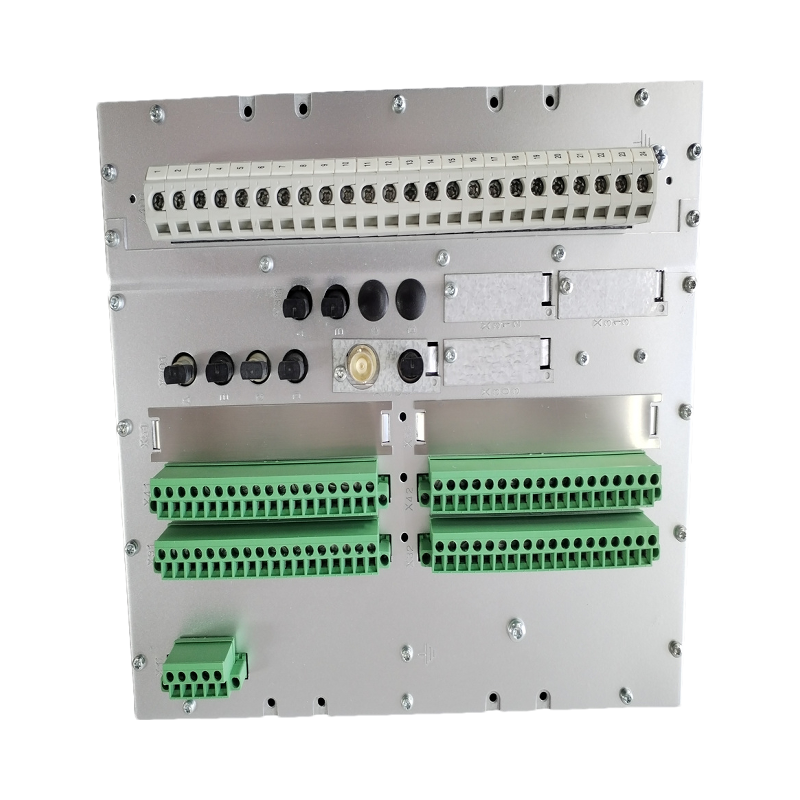

ABB REG670

• Input Channels: Up to 24 analog inputs for comprehensive protection and monitoring integration.
• Output Relays: Multiple programmable output relays for trip and alarm signaling.
• Communication Ports: Dual Ethernet ports for high-speed data transfer and redundancy.
• Operating Temperature: -20°C to +70°C, ensuring reliability in extreme environments.
• Protection Class: IP66/IP67 (dust-tight and waterproof).
• Dimensions: Compact design for easy integration into control panels or switchgear.

2. Functional Features

• Comprehensive Protection Functions:
  • Generator Protection: Differential protection, overcurrent, under/overvoltage, under/overfrequency, loss of excitation, stator/rotor ground fault, and more.
  • Transformer Protection: Differential protection with harmonic restraint, overexcitation, thermal overload, and Buchholz relay monitoring.
  • Advanced Algorithms: Adaptive protection schemes for enhanced sensitivity and selectivity.
• High-Precision Measurement:
  • Advanced digital signal processing (DSP) for accurate current, voltage, power, and energy measurements.
  • Real-time monitoring of electrical parameters to detect anomalies early.
• Fast Response Time:
  • Sub-cycle response for critical protections (e.g., differential protection with typical operating times of 15 ms).
• Flexible Configuration:
  • Software-configurable settings for tailored protection schemes.
  • Supports custom logic and automation sequences via programming tools.
• Event Recording and Analysis:
  • Built-in event logger for capturing fault sequences and system disturbances.
  • Disturbance recording for post-fault analysis.
• User-Friendly Interface:
  • Intuitive graphical user interface (GUI) for easy setup and monitoring.
  • Local and remote access via HMI or SCADA systems.

3. Application Scenarios

• Power Generation:
  • Protects generators in hydroelectric, thermal, nuclear, and renewable energy plants (e.g., wind and solar).
  • Suitable for both new installations and retrofits in existing facilities.
• Industrial Power Systems:
  • Safeguards motors, transformers, and distribution networks in manufacturing plants.
• Renewable Energy:
  • Integrates with inverters and grid-connected systems for reliable operation.
• Railway Electrification:
  • Ensures safe and reliable power supply for electric trains and traction systems.
• Substations and Grid Infrastructure:
  • Provides line and feeder protection in medium/high-voltage networks.

4. Supported Industrial Protocols

• IEC 61850: Standard protocol for substation automation, enabling seamless integration with modern DCS/SCADA systems.
• Modbus RTU/TCP: Serial and Ethernet-based communication for legacy system compatibility.
• PROFINET/EtherNet/IP: Real-time data exchange in industrial Ethernet networks.
• DNP3: Supports distributed automation applications.
• IEC 60870-5-103: Legacy protocol for older systems.
• Custom Protocols: Configurable via ABB engineering tools for proprietary systems.

5. Extensibility and Scalability

• Modular Design:
  • Supports additional I/O modules, temperature sensors, and communication interfaces for future expansion.
• Multi-Device Integration:
  • Can be cascaded with other REG670 units or ABB protection devices for large-scale system protection.
• Software Customization:
  • Programmable via ABB Control Builder or System 800xA for tailored control logic.
• Industrial Network Compatibility:
  • Integrates with ABB Symphony Plus, 800xA, and third-party DCS/PLC systems.
• Flexible Mounting Options:
  • DIN rail or panel mounting for versatile installation in various environments.

6. Advantages

• High Reliability: Built for 24/7 operation in demanding industrial settings.
• Precision and Stability: Ensures accurate protection and monitoring for critical assets.
• Durability: IP66/IP67 rating and robust construction minimize downtime.
• Ease of Use: Simplified installation, configuration, and maintenance.
• Global Support: Backed by ABB’s worldwide service network and technical expertise.
