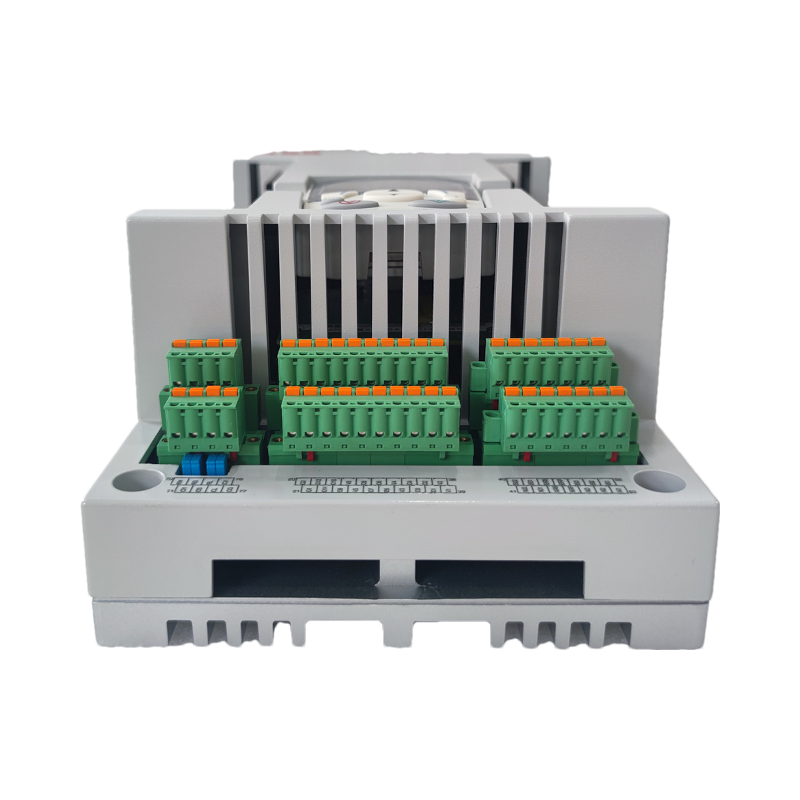

ABB UNS0119A-Z,V1

• Input/Output (I/O):
  • Configurable analog/digital I/Os for flexible integration with sensors and actuators.
• Operating Temperature: -20°C to +70°C (compliant with DNV and UL standards for harsh environments).
• Protection: Overvoltage, undervoltage, and overcurrent protection mechanisms.
• Certifications: SIL 3 (Safety Integrity Level) and PL e (Performance Level) certified for functional safety.

2. Functional Features

• Automatic Voltage Regulation (AVR):
  • PID control algorithm ensures precise voltage stability.
  • Supports parallel operation of multiple generators with advanced load-sharing capabilities.
• High Reliability:
  • Designed for continuous operation in extreme temperatures and vibrations.
  • Redundant communication channels (CAN bus, Ethernet) for fault tolerance.
• Intelligent Monitoring and Diagnostics:
  • Real-time monitoring of voltage, current, and system status.
  • Data logging and trend analysis via CMT1000 software for predictive maintenance.
• User-Friendly Interface:
  • Local HMI displays operational parameters and alerts.
  • LED indicators for power, excitation, and fault status.
• Flexible Configuration:
  • Modular design allows customization of I/Os and communication protocols.
  • Supports standalone operation or integration into larger control systems.

3. Application Scenarios

• Power Generation:
  • Small to medium-sized synchronous generators in hydro, thermal, and wind power plants.
  • Ensures stable voltage output and grid synchronization during parallel operation.
• Industrial Automation:
  • Voltage control for critical equipment in chemical, petroleum, and gas industries.
  • Motor drives and pump systems requiring precise excitation management.
• Renewable Energy:
  • Wind turbines and solar inverters for stable grid integration.
• Marine & Offshore:
  • Shipboard power systems for voltage regulation in dynamic operating conditions.

4. Supported Industrial Protocols

• Modbus RTU/TCP: For integration with SCADA systems and PLCs.
• Ethernet/IP: High-speed communication for industrial networks.
• PROFIBUS DP: Fieldbus connectivity for legacy device integration.
• CAN Bus: Dual-channel communication for redundant systems.
• Custom Protocols: Adaptable to proprietary protocols via software configuration.

5. Extensibility & Scalability

• Modular Design:
  • Expandable with additional I/O modules, communication interfaces, and field devices.
  • Supports up to 4 safety devices (e.g., emergency stops, light curtains) in standalone mode.
• High I/O Capacity:
  • Configurable analog/digital inputs/outputs for diverse sensor and actuator integration.
• Software Flexibility:
  • CMT1000 software enables remote parameterization, monitoring, and firmware updates.
• Redundancy Support:
  • Dual-channel CAN bus and Ethernet ports for fault-tolerant operation.

6. Advantages

• High Performance:
  • Dual-core processor and advanced control algorithms deliver fast, accurate voltage regulation.
• Robust & Reliable:
  • Designed for continuous operation in extreme industrial environments.
• Easy to Use:
  • Intuitive HMI and CMT1000 software simplify setup and maintenance.
• Scalable:
  • Modular architecture supports evolving industrial needs.
• Globally Certified:
  • Complies with DNV, UL, and IEC standards for worldwide deployment.
