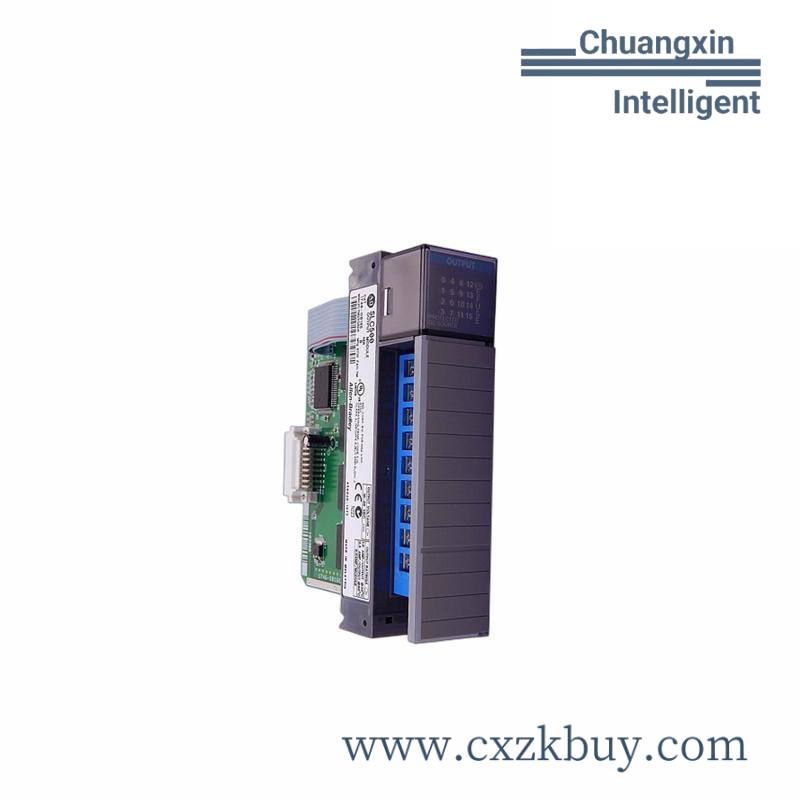

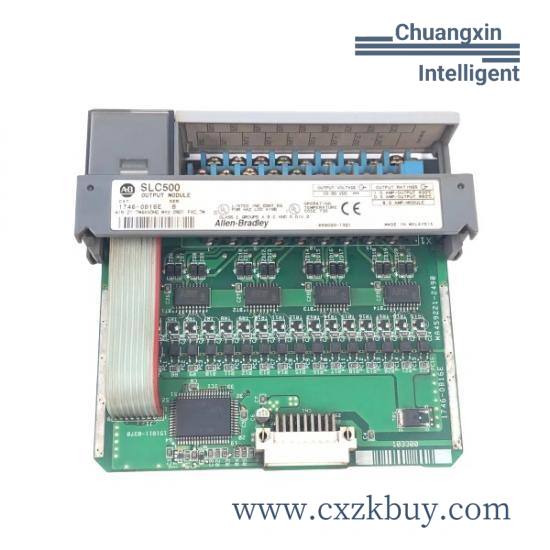

Allen-Bradley 1746-OB16E Digital Output Module
The Allen-Bradley 1746-OB16E is a high-performance digital DC output module designed for industrial automation systems. It provides reliable and precise control over up to 16 channels, making it ideal for various applications including manufacturing, process control, and factory automation.
Brand:Allen-Bradley
Model:1746-OB16E
Module Type:Digital Output Module
Number of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current per Output:0.25 A at 60°C
Continuous Current per Module:4 A at 60°C
Isolation – Communication Circuits:500 VDC
Isolation – Backplane:1500 VAC
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%
The Allen-Bradley 1746-OB16E Digital Output Module is an essential component for industrial automation systems. With its robust design and reliable performance, this module offers 16 channels of digital output, providing precise control over industrial processes. Built with a focus on durability, the module operates within a wide temperature range of 0°C to 60°C and withstands up to 95% humidity, making it suitable for harsh environments. The module’s on-state voltage drop is minimal at just 1.2 V, ensuring efficient power usage. Additionally, the off-state output leakage is kept low at 1 mA, ensuring consistent performance even during standby periods. Designed for seamless integration, the 1746-OB16E is compatible with the SLC 500 processor series, allowing for easy installation and maintenance. Whether you’re managing complex manufacturing lines or critical process control systems, the Allen-Bradley 1746-OB16E is your go-to solution for reliable digital output control.
