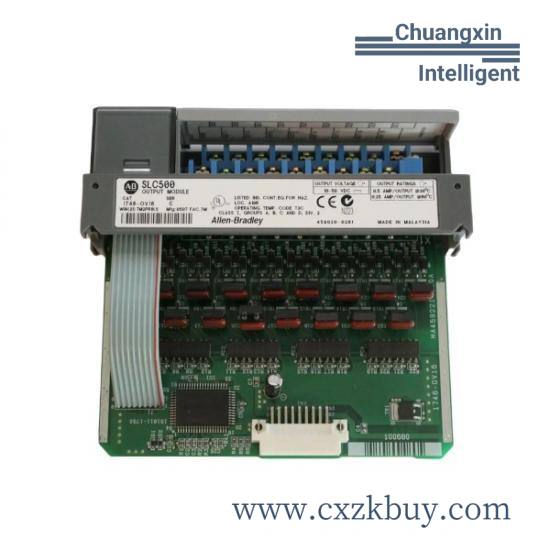

Allen Bradley 1746-OV16 Discrete Output Module, PLC SLC 500 Series

Allen Bradley 1746-OV16 Discrete Output Module, PLC SLC 500 Series

    The Allen-Bradley 1746-OV16 Discrete Output Module is an essential component for industrial automation systems, designed to provide reliable digital output signals. Ideal for use in manufacturing environments where precise control and signal transmission are critical.

Product Model:1746-OV16

Type:Discrete Output Module

Manufacturer:Allen-Bradley

Nominal Input Voltage:24VDC

Input Voltage Range:10-50 VDC

Backplane Current Consumption:0.270 A

Voltage Range:10-50 VDC

Sink Outputs:16

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Continuous Current Per Output:0.25 A at 60°C

Continuous Current Per Module:4 A at 60°C

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95%

    The Allen Bradley 1746-OV16 SLC 500 Discrete Output Module is a top-of-the-line digital output device tailored for demanding industrial environments. Designed to deliver outstanding performance, this module features a robust construction capable of withstanding harsh conditions while maintaining exceptional reliability. With its 16 sink outputs and a wide input voltage range, this module offers flexible connectivity options to suit various applications.

    Its compact size and open-type enclosure allow for easy installation and integration into existing systems without compromising on performance or functionality. The module supports a temperature range from 0 to 60 degrees Celsius, ensuring consistent operation in diverse environments.

    With a nominal input voltage of 24VDC and an input voltage range of 10-50 VDC, this module is highly versatile, accommodating a variety of power supply requirements. Additionally, it has a backplane current consumption of 0.270 A, making it energy-efficient while still providing reliable performance.

    Key Features:

    – High-precision control with 16 sink outputs

    – Wide input voltage range for flexible connectivity

    – Compact design for seamless integration

    – Robust construction for durability in harsh environments

    – Energy-efficient operation

    – Compatible with SLC 500 processors for seamless integration

    This Allen Bradley 1746-OV16 SLC 500 Discrete Output Module is a must-have component for any industrial automation system, offering unparalleled reliability and efficiency. Upgrade your control systems today with this state-of-the-art digital output module.
