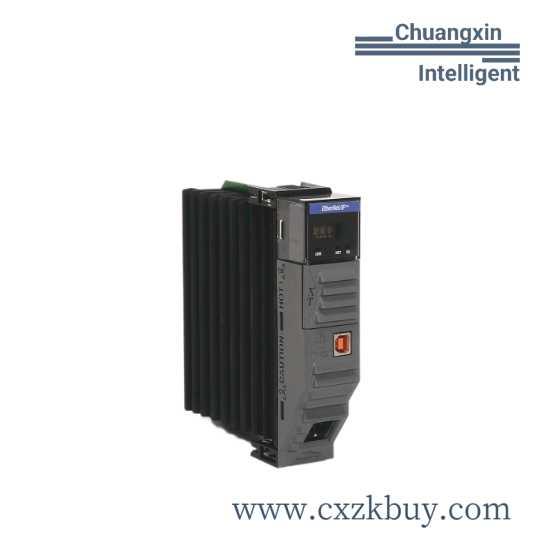

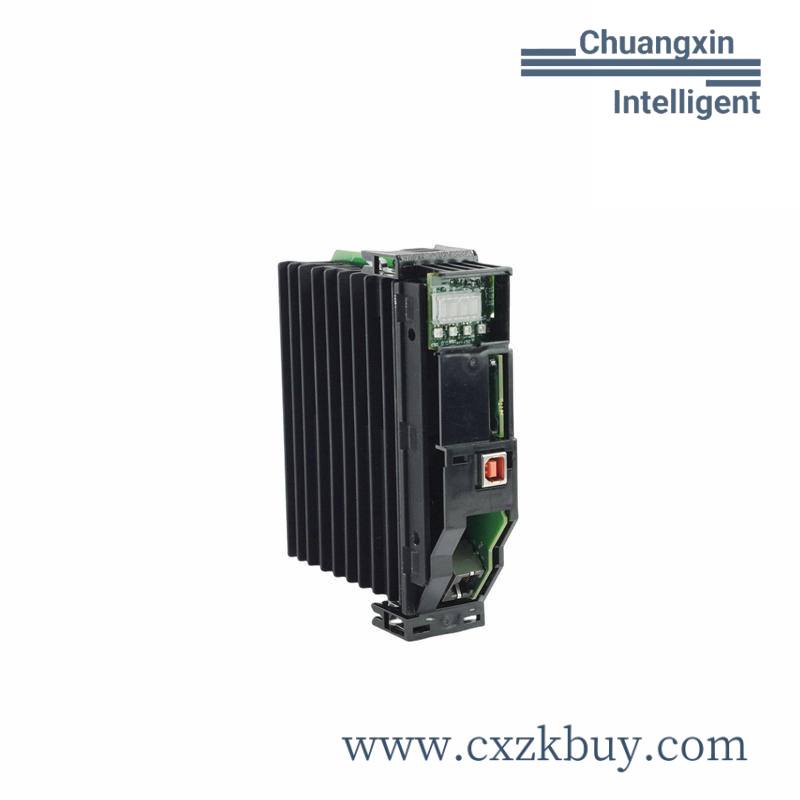

Allen-Bradley 1756-EN2TXT EtherNet/IP Bridge Module

Allen-Bradley 1756-EN2TXT EtherNet/IP Bridge Module

    The A-B 1756-EN2TXT EtherNet/IP Bridge Module provides high-speed communication capabilities, enabling seamless integration between control systems and network infrastructure. It is ideal for applications requiring reliable and efficient data transmission in industrial environments.

Model Type:High Capacity IP Module

Model Number:1756EN2T

Manufacturer:Allen Bradley

Communication Protocol:Ethernet/IP Bridge

Power Supply:3 MA at 24 VDC

Communication Speed:10/100 MBPS

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet, USB Port

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

    The A-B 1756-EN2TXT EtherNet/IP Bridge Module is a high-capacity industrial communication device specifically designed for the needs of modern industrial environments. This module is capable of providing seamless integration between control systems and Ethernet networks, ensuring reliable real-time data exchange for enhanced operational efficiency. With its robust design and comprehensive feature set, it is perfect for applications requiring precise and continuous communication.

    Key Design Highlights:

    • Advanced Ethernet/IP Bridge Technology

    • Easy Installation and Configuration

    • Compatible with Allen-Bradley ControlLogix® Systems

    • Robust and Reliable Performance in Harsh Environments

    This module offers a power supply of 3 MA at 24 VDC, which ensures stable performance under various conditions. It supports communication speeds up to 10/100 MBPS and has an isolation rating of 30 V continuous, making it ideal for applications where reliability is critical.

    Its temperature range is from 0 to 60 degrees Celsius, ensuring it can operate in a wide variety of environments. The module also features a vibration tolerance of 2 G and shock resistance of 30 G, allowing it to withstand the rigors of industrial settings.
