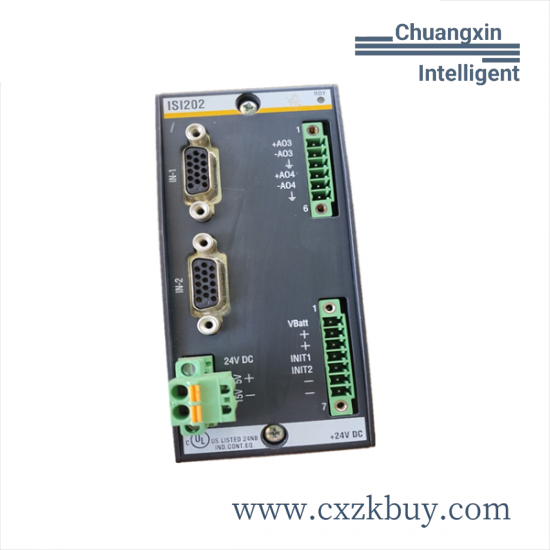

Bachmann ISI202 High-Speed Positioning Module
The Bachmann ISI202 Positioning Module is a high-performance component designed for precise positioning tasks in industrial automation systems. It supports incremental and SSI encoders, providing robust performance for applications requiring accurate motion control.
Module Type:Positioning Module
Encoder Support:INC/SSI
Frequency:1 MHz
Resolution:32 bit
Output Voltage Range:+5 V and +15 V selectable with jumper, 24 V looped through
Output Voltage:±10 V
Output Current:Max. ±2 mA
Digital Inputs:4x DI 24V
The Bachmann ISI202 Positioning Module is an essential component for any industrial automation system requiring precise motion control. With its 32-bit counter resolution and two input and output channels, it ensures high accuracy and reliable performance. The module operates with a maximum frequency of 1 MHz and offers ±10V output voltage and ±2 mA output current. Its design includes synchronization capabilities and support for multiple types of signals including INC A, A/B/N. The module supports various encoders, making it versatile for different industrial applications. It’s equipped with two inputs for incremental or Synchronous Serial Interface (SSI) sensors, and two outputs for controlling external devices. Designed for easy integration into existing systems, this module is a robust solution for improving efficiency and precision in automated processes.
