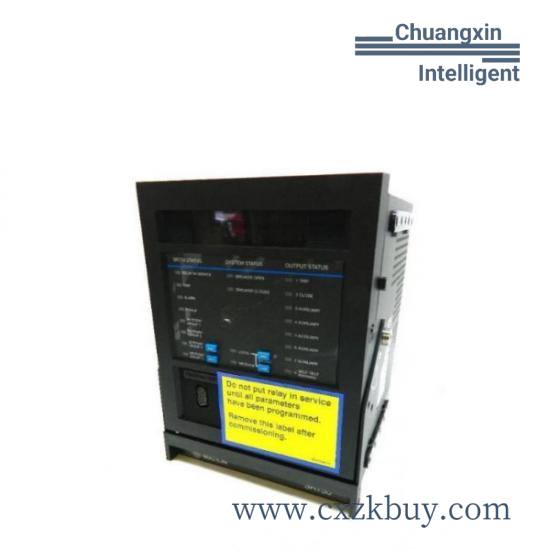

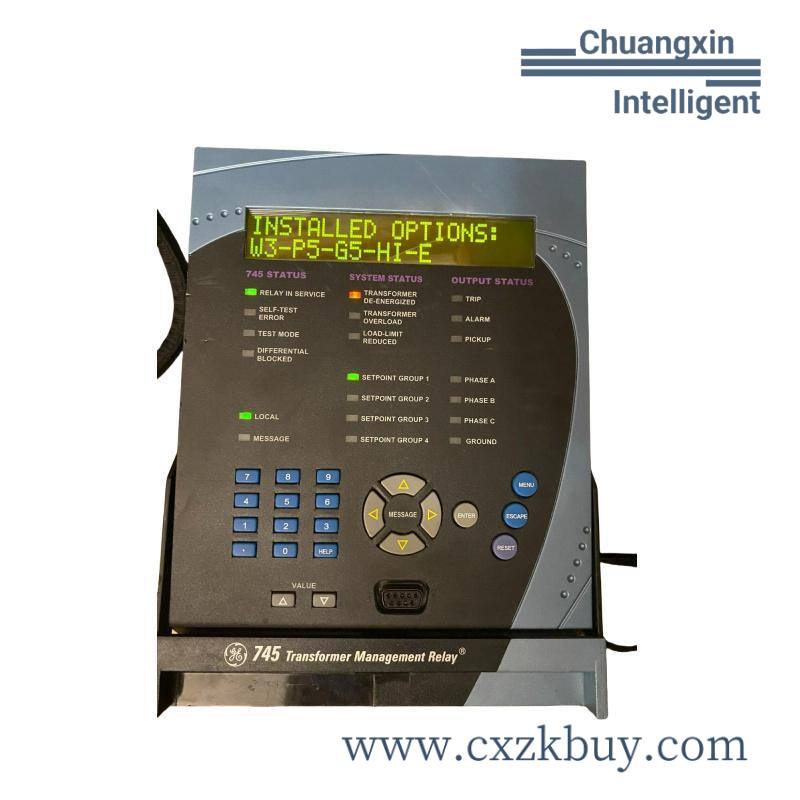

GE 745-W3-P511-G51-HI-R-E Transformer Protection System for Industrial Control

GE 745-W3-P511-G51-HI-R-E Transformer Protection System for Industrial Control

    The GE 745-W3-P511-G51-HI-R-E is a sophisticated Transformer Protection System from General Electric, designed to provide unparalleled protection for transformers. It features advanced functionalities and robust design suitable for industrial applications.

Weight:4.8kg

Voltage Input Burden:Less than 0.025 VA at 120 V

Source VT:2 to 600 kV / 60 to 120 V

Number of Logic Inputs:16

Manufacturer:General Electric Multilin

Fuse Current Rating:3.15 A

Enhanced Display:Yes

High Control Power:Yes

Three Windings Per Phase:Yes

3 Phase Current Input Winding:At 5A

Restricted Ground Fault:Yes

Analog Inputs/Outputs:Available

Protection System Type:Two-Winding Transformer Management Relay

    Designed specifically for managing and safeguarding transformers, autotransformers, and reactors, the GE Multilin 745-W3-P5-G5-HI-R-E Transformer Protection System is an invaluable asset in industrial settings. Its three windings per phase and three phase current input windings at 5A provide comprehensive protection against potential faults.

    With a restricted ground fault feature, this protection system ensures minimal strain on transformer elements, extending system life and reducing maintenance costs. Its enhanced display and high control power make it easy to monitor and manage transformer operations efficiently.

    The system can function as a standalone unit or integrate seamlessly with other relays in the GE Multilin 745 series, offering flexibility in installation and configuration. Its lightweight design and durable construction make it suitable for various industrial environments, from manufacturing plants to utility substations.

    Key features include the ability to handle up to 600kV voltage inputs, sixteen logic inputs for diverse operational needs, and a fuse current rating of 3.15A, ensuring reliable performance under demanding conditions. The GE Multilin 745-W3-P5-G5-HI-R-E Transformer Protection System sets new standards in transformer protection and management.

    Optimized for ease of use and maintenance, this system allows for straightforward integration into existing systems, requiring minimal additional equipment or connections. Whether you are upgrading an existing facility or building a new one, this transformer protection system provides the reliability and efficiency you need.
