GE DS3800HPIB Phase Module Upper Bridge Uncontrolled Pulse

GE DS3800HPIB Phase Module Upper Bridge Uncontrolled Pulse

    The DS3800HPIB is a specialized phase module designed for upper bridge control within the Speedtronic Mark IV line by General Electric. It serves critical functions in automation and industrial control systems, ensuring high precision and reliability in operation.

Manufacturer:General Electric

Model Number:DS3800HPIB

Series:DS3800

Board Type:Panel Interface Board

Compatibility:For use with Mark IV Turbine Control Systems

LED Indicators:Over thirty-five red LEDs

Screw Mounts:Twelve screw mounts for secure installation

Connection Points:Nine separate connection points for various wiring harnesses

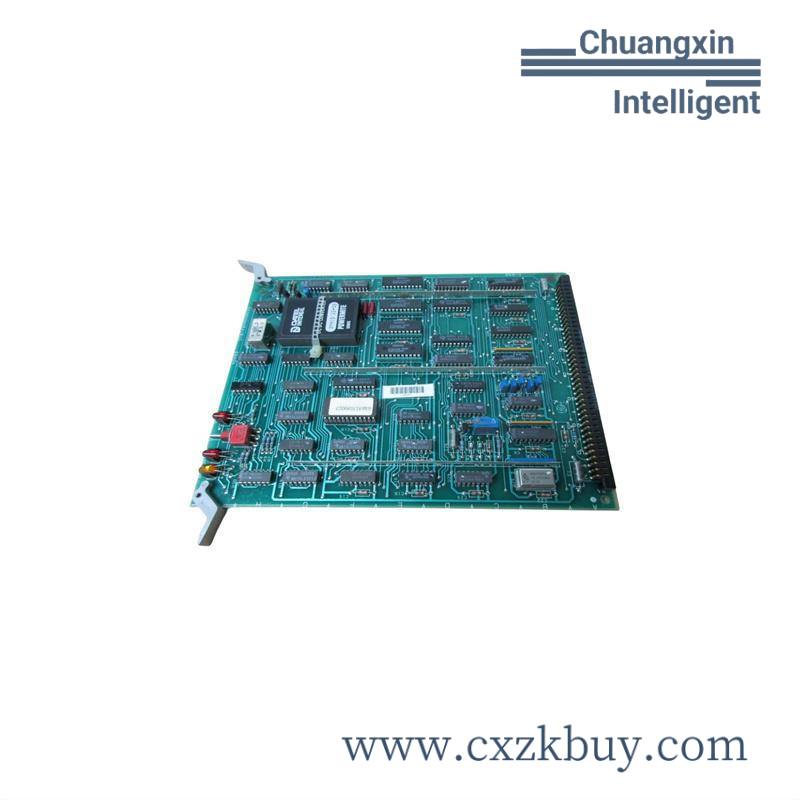

    The DS3800HPIB is a highly specialized Panel Interface Board developed by General Electric for their Mark IV turbine control systems.

     This board serves as a critical interface component, enabling seamless communication and data exchange between the control system and peripheral devices.

     Its robust design includes 12 screw mounts for secure installation and over 35 red LEDs for real-time status monitoring.

     Additionally, it features a small switch for user interaction and nine connection points compatible with female harnesses, ensuring easy integration into existing systems.

     The DS3800HPIB is designed to meet the stringent demands of industrial environments, providing reliable performance and durability.

     By choosing the DS3800HPIB, customers can expect enhanced system efficiency and reduced downtime, making it an essential component for any turbine control application.
