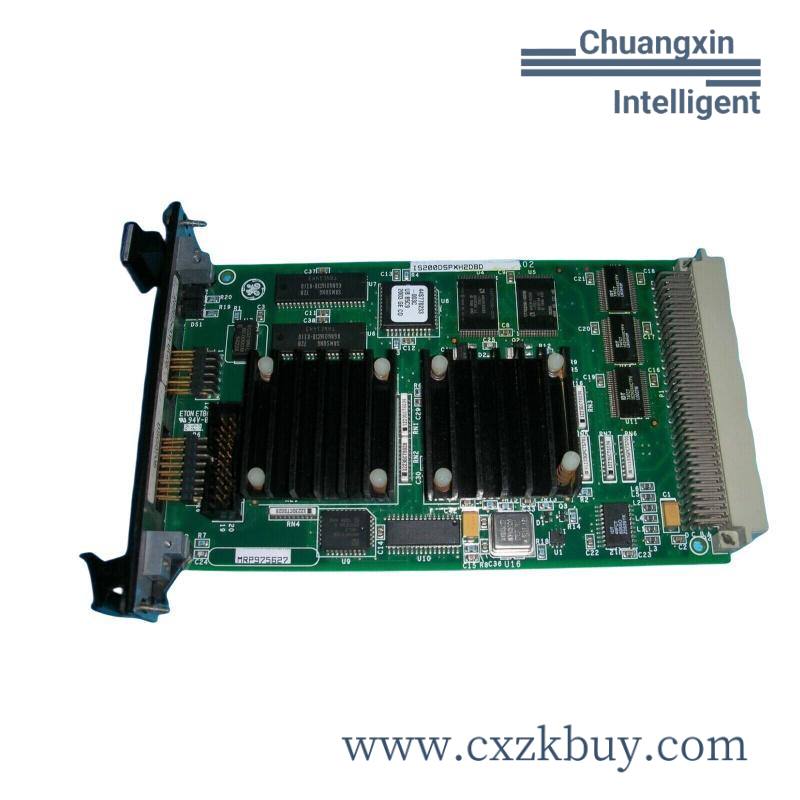

GE IS200DSPXH2D Digital Signal Processor Control Board for EX2100e System
The GE IS200DSPXH2D is a highly efficient digital signal processor control board designed for precise motor and bridge regulation. It integrates advanced technology and robust firmware, making it ideal for industrial automation systems requiring high performance and reliability.
Manufacturer:General Electric Industrial Systems
Instruction Manual:GEI-100267B
Functional Abbreviation:DSPX
LEDs:2, Status and Fault
I/O Connectors:3; P6, P1, and P5
Serial Interfaces:Asynchronous TTLs and Five Mb/s ISBus
Onboard Firmware:Application Code, Boot Loader, and Configuration Parameters
Input Quantity:6
Board Description:Digital Signal Processor Control Board
Board Use Mode:Controller for Motor and Bridge Regulation
The GE IS200DSPXH2D board is meticulously crafted for the EX2100e system, ensuring compatibility and reliability in demanding industrial environments. With six backplane inputs and three I/O connectors, it provides extensive connectivity options. The onboard firmware includes application code, boot loader, and configuration parameters for seamless integration and operation.
Featuring two 5 Mb/s ISBus interfaces, this control board facilitates efficient data transfer and communication between systems. Its advanced design supports both master and slave modes, making it ideal for complex motor and bridge regulation tasks.
The board’s dual LEDs provide clear status and fault indications, enabling quick troubleshooting and maintenance. Built with robust components, the GE IS200DSPXH2D offers reliable performance and longevity, making it a valuable asset for any industrial control setup.
Designed with the latest technology advancements, the GE IS200DSPXH2D ensures optimal functionality and durability. It is perfect for those looking to upgrade their existing systems or implement new control solutions in industrial automation.
