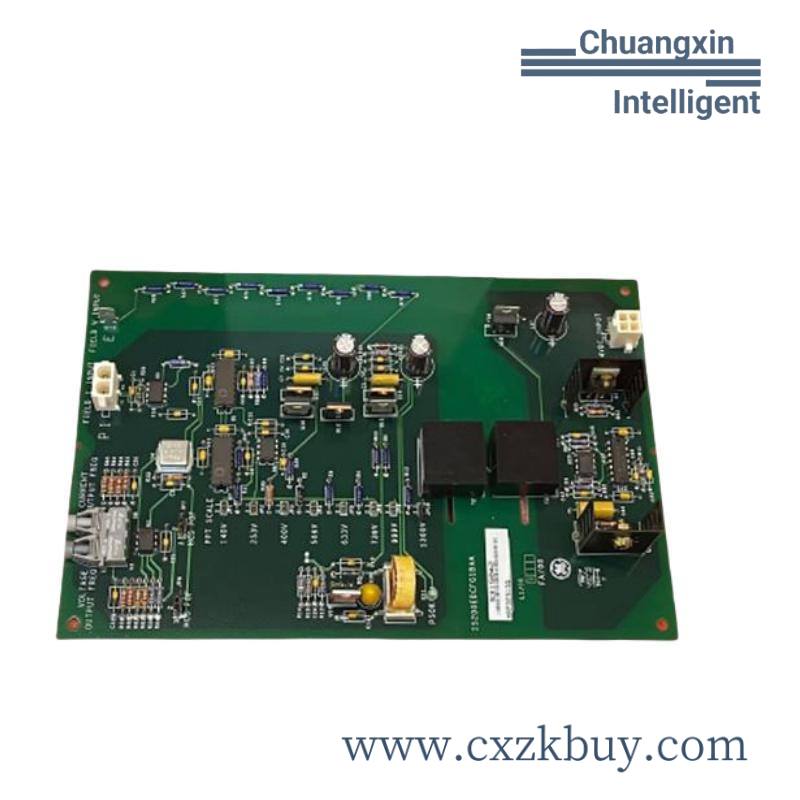

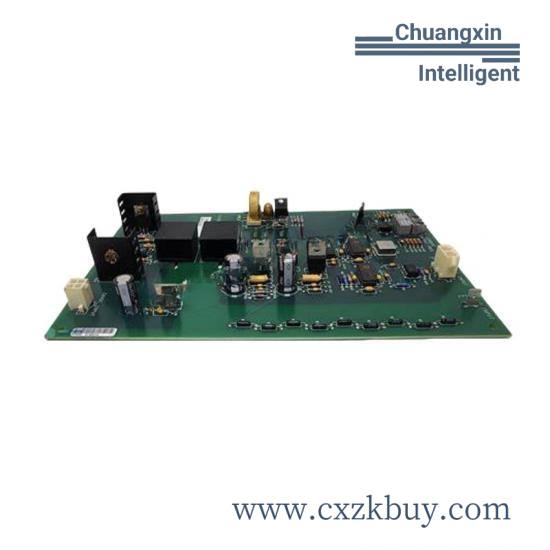

GE IS200EDCFG1B Exciter DC Feedback Board – Key Component for Excitation Control Systems
The IS200EDCFG1B Exciter DC Feedback Board is designed for excitation control systems, specifically tailored for the GE EX2100 Series. It measures field voltages and currents at the SCR bridge and includes a high-speed fiber optic link via an EISB board.
Alphanumeric Catalog Number:IS200EDCFG1B
Fiber Optic Cable Type:Plastic Optical Fiber (POF) and Hard Clad Silica (HCS)
Field Voltage Inputs:Indicated by R26, R27, R77, R73, R74, R76, R72, R80, R79
Power Supply:External ±24 V DC source
LED Light Indicators:1 for power supply operation
Manufacturer:General Electric Company
This specialized exciter DC feedback board from General Electric (GE) is integral to the efficient operation of the EX2100 Series Excitation Control Systems.
Designed for high-performance industrial applications, it plays a crucial role in measuring field voltages and currents, which are essential for ensuring the stability and reliability of power generation processes.
With its robust construction and advanced fiber optic capabilities, the IS200EDCFG1B delivers precise and reliable feedback necessary for optimal control and performance.
The inclusion of multiple voltage input indicators allows for comprehensive monitoring, enhancing the overall functionality and adaptability of the system.
Additionally, the board’s compatibility with external ±24 V DC sources makes it a versatile choice for various industrial settings.
Experience the precision and reliability offered by GE’s IS200EDCFG1B, a cornerstone in modern excitation control technology.
