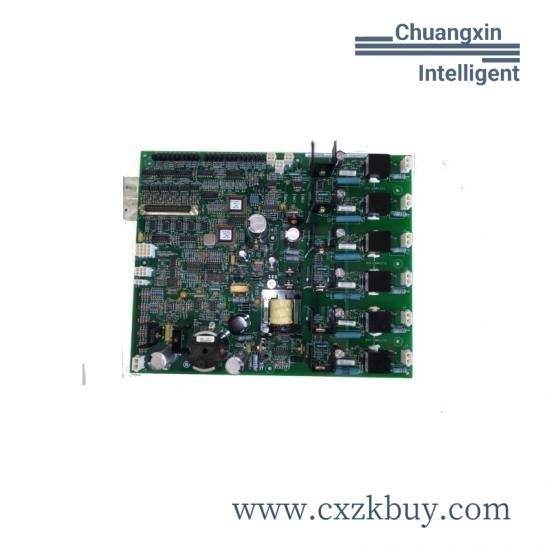

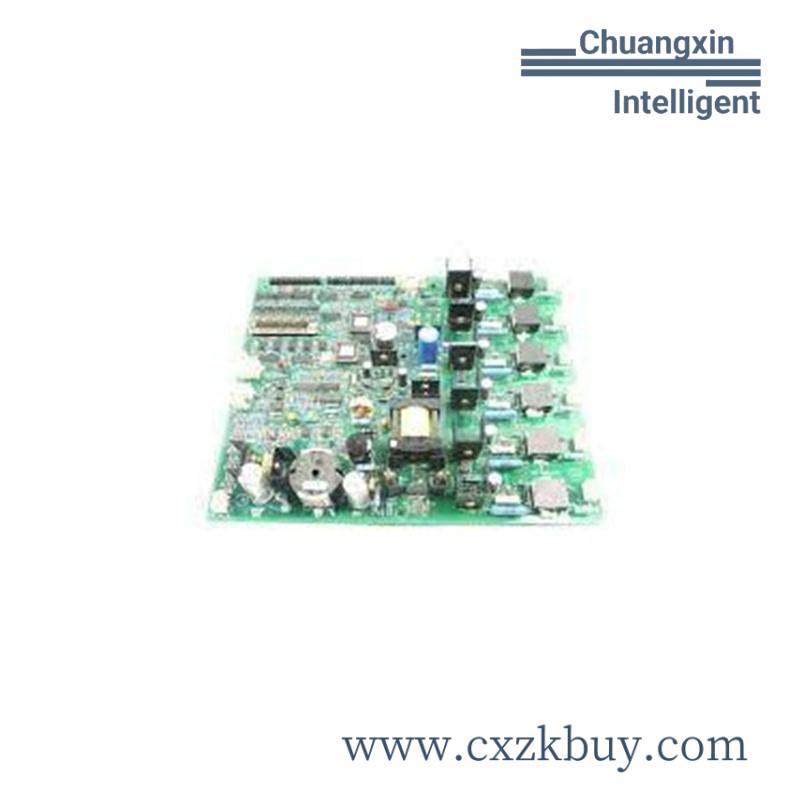

GE IS200EGPAG1BEC Gate Pulse Amplifier for EX2100 Excitation Control Series
The GE IS200EGPAG1BEC Gate Pulse Amplifier is an integral component of GE’s EX2100 Excitation Control series, designed to control and amplify gate pulses to power bridge systems. It ensures precise control over SCRs and offers critical conduction feedback, making it essential for advanced industrial control applications.
Board Type:Gate Pulse Amplifier
Configurable Hardware:5 On-board Jumpers
Functionality:Controls power bridge and gate amplifier, interfaces with conduction feedback
Weight:1lbs 9oz
Manufacturer:General Electric, GE Industrial Systems
Discontinued Status:Yes, contact AX Control for available surplus
Instruction Manual Number:GEI-100461 (GEH-6632 Series Manual)
The IS200EGPAG1BEC is a high-performance Gate Pulse Amplifier designed specifically for use in the EX2100 Excitation Control Series. Its primary function is to amplify gate pulses which are crucial for controlling the power bridge within industrial systems.
This board includes on-board green and red LED indicators for status monitoring. With five on-board jumpers, it offers configurability options that enhance its utility across different industrial applications.
The IS200EGPAG1BEC is meticulously engineered to interface with conduction feedback mechanisms, alongside temperature and airflow monitoring systems, ensuring reliable performance under varying conditions.
Manufactured by General Electric, this component has been utilized in various high-stress environments, proving its durability and reliability. It is ideal for engineers and technicians seeking robust solutions for their excitation control needs.
Despite being discontinued, AX Control maintains a supply of surplus units for those who need them. For inquiries or purchases, please contact us directly.
