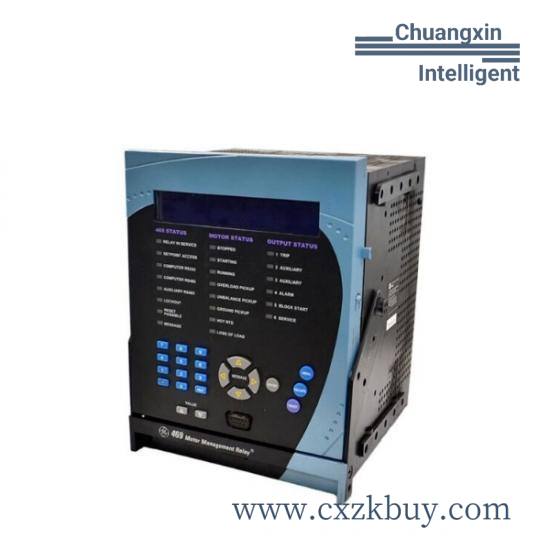

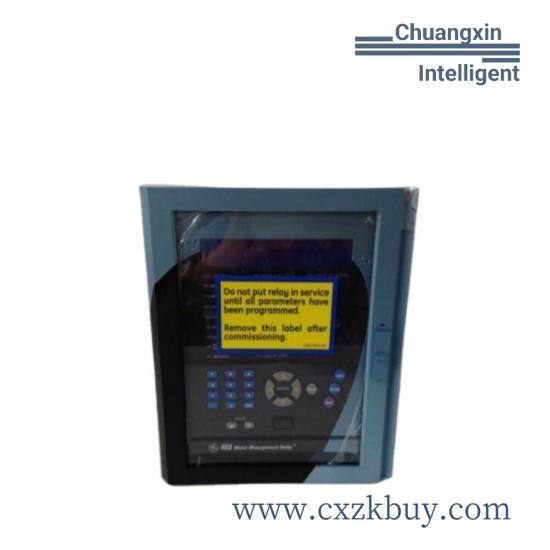

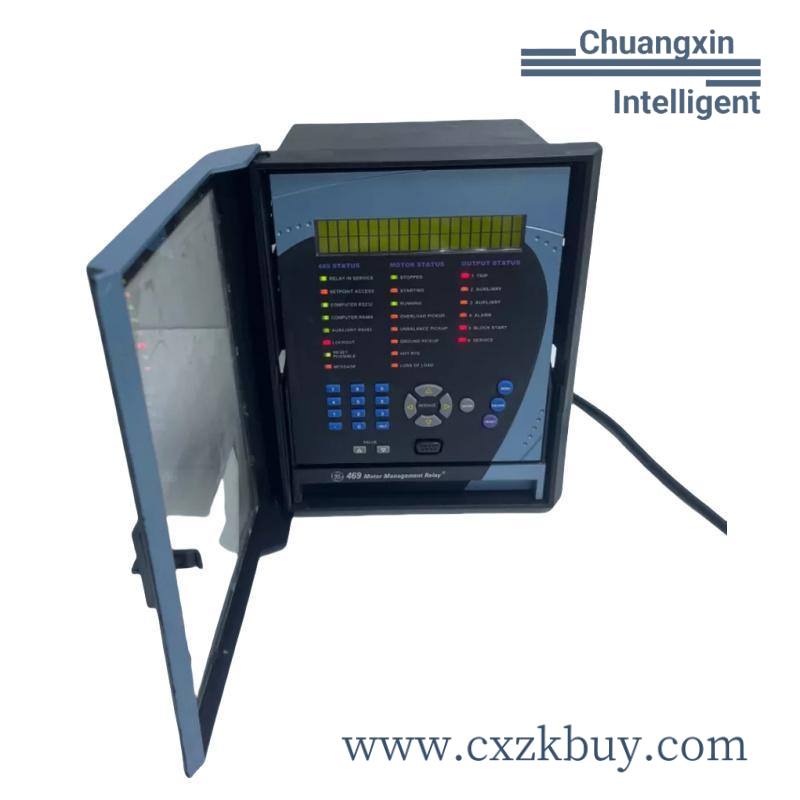

GE SR469-P5-HI-A20 Motor Management Relay

GE SR469-P5-HI-A20 Motor Management Relay

    This advanced Motor Management Relay from GE is designed for industrial control systems. It provides precise monitoring and protection for motors in various applications including factory automation, power generation, and process industries.

Model Number:469-P5-HI-A20

Brand:GE Multilin

Origin:Made in USA

Input Range:70-265VAC, 90-300VDC

Phase Current Inputs:5 A phase CT secondaries

RTD Inputs:Multiple RTD inputs for temperature and hottest point determination

Analog Outputs:Four (4) 4 to 20 mA analog outputs

Environmental Protection:Harsh (chemical) environment conformal coating

Ethernet Support:Ethernet (10Base-T)

Weight Before Packaging:Less than 15 lbs

Dimensions:12 x 11 x 10 inches

    The GE SR469-P5-HI-A20 is a high-quality motor management relay specifically tailored for industrial applications where motor protection and efficiency are paramount. This advanced device comes equipped with multiple RTD inputs, capable of detecting actual temperatures and identifying the hottest point within the motor system. These RTDs are made from materials such as 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, ensuring precise temperature measurements.

    With its four 4 to 20 mA analog outputs, the SR469-P5-HI-A20 offers flexible communication options, making it suitable for integration into existing systems. The unit also features enhanced environmental protection with conformal coating, ideal for use in harsh chemical environments.

    Additionally, the SR469-P5-HI-A20 supports Ethernet connectivity via 10Base-T, enabling seamless integration into networked control systems. Its compact size, weighing less than 15 lbs and measuring 12 x 11 x 10 inches, makes it easy to install and integrate into any industrial setup.

    For those seeking reliable and robust motor protection and management solutions, the GE SR469-P5-HI-A20 stands out as an indispensable choice.
