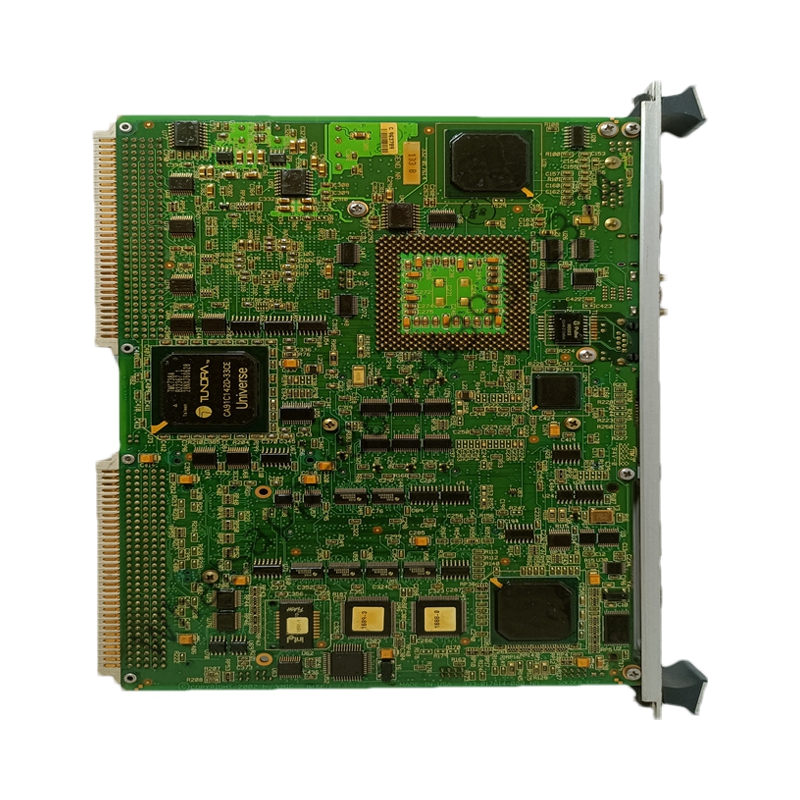

GE VMIVME-2200

• Output Characteristics:
  • Open collector outputs with a maximum continuous current of 300 mA and a voltage of 50 VDC.
• Data Width: 8-bit or 16-bit configurable.
• Response Time: Input response time is less than 1 μs, and output response time is less than 10 μs.
• Isolation: 1 kV continuous isolation between inputs, outputs, and power supplies.
• Protection: Built-in surge absorption, short circuit, and over-temperature protection with automatic shutdown in case of abnormalities.
• Calibration: Onboard precision voltage source supporting self-calibration and fault detection.
• Operating Temperature: 0 °C to 70 °C (extended version: -40 °C to 85 °C).
• Dimensions: 6U single-slot VME board card.
• Power Supply: +5 VDC with power consumption less than 8 W.

Functional Characteristics of GE VMIVME-2200

• High Density: Integrates 32 I/O channels on a single card, saving rack space.
• High-Speed Opto-Couplers: Nanosecond-level response time, suitable for high-frequency counting and pulse control.
• Self-Diagnosis: Real-time detection of channel status, power anomalies, and communication errors.
• Hot Swapping: Supports hot plugging for easy maintenance.
• Strong Compatibility: Complies with the VME64 standard and can be mixed and matched with various CPUs and I/O modules.

Application Scenarios of GE VMIVME-2200

• Industrial Automation: Used for PLC expansion, robot I/O, and packaging machine control.
• Process Control: Monitors and controls the start/stop and status of valves, pumps, and motors.
• Test and Measurement: Utilized in ATE equipment, vibration tables, and environmental chamber signal switching.
• Energy and Power: Collects switch signals in substations and protects signals in wind turbines and gas turbines.
• Rail Transportation: Controls signal machines, turnouts, and platform screen doors.
