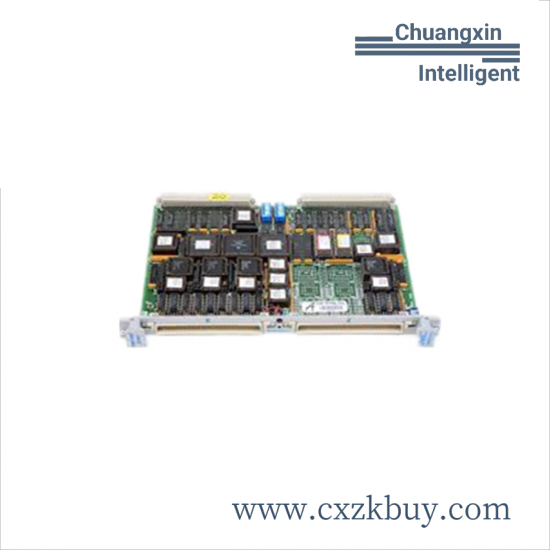

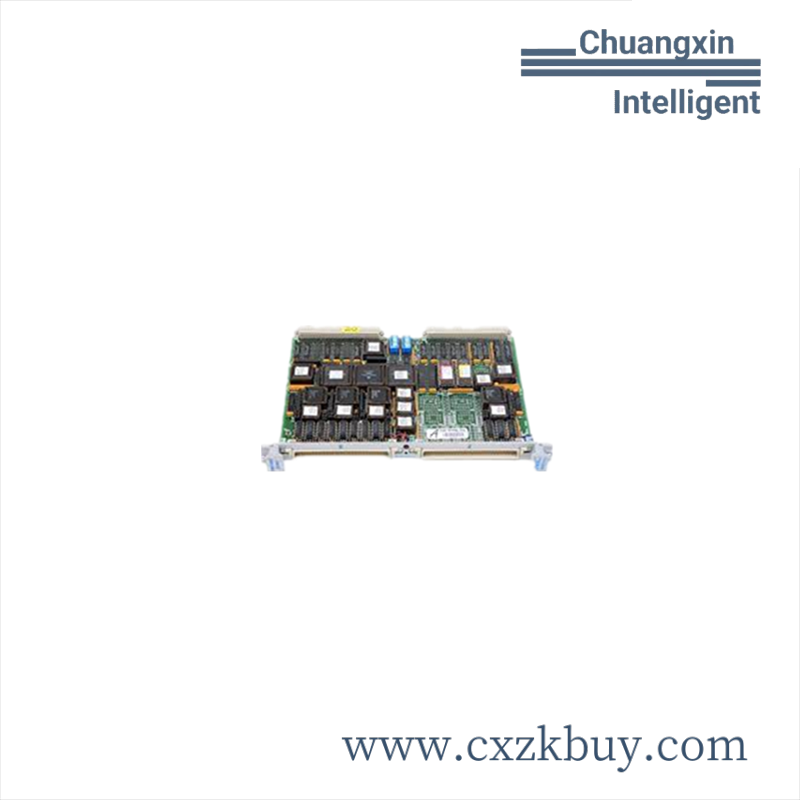

GE VMIVME-2540 Intelligent Counter Module for Industrial Automation
The GE VMIVME-2540 is a high-performance intelligent counter controller module designed for industrial automation applications. With the capability to count up to 4 Giga events, it offers precise digital input/output control and seamless integration into VMEbus systems, making it ideal for demanding automation environments.
Manufacturer:General Electric (GE)
Model Number:VMIVME-2540
Series:VMIC/GE Fanuc Boards
Function:Intelligent Counter Controller
Maximum Count Capacity:Up to 4 Giga Events
Output Channels:Up to 24 Discrete Outputs
Resolution:12-bit
Current Handling:Sourcing/Sinking up to 10 mA
Voltage Range:+/- 10 V
CPU:Onboard 15 MHz 68HC000 Processor
Memory:64 Kbyte EPROM Firmware, 128 Kbyte Zero Wait-State Static RAM
Interface:VMEbus Slave Interface
Channels Available:4, 8, 16, or 24 Channel Configurations
Certification:Compliant with ANSI/IEEE Standard 754-1985 for 32-bit Floating Point Operations
Operating Environment:Designed for Industrial Environments
The GE VMIVME-2540 is a high-performance intelligent counter controller specifically engineered for precision industrial automation tasks. Developed as part of the VMIC/GE Fanuc series, this module offers exceptional performance in event counting, frequency measurement, and signal generation, ensuring reliable operation in complex industrial systems.
Equipped with an onboard 15 MHz 68HC000 CPU, the VMIVME-2540 delivers fast and efficient processing of control tasks. Its 64 Kbyte EPROM firmware and 128 Kbyte static RAM provide stable execution of command-driven functions without wait states, allowing for real-time response and minimal latency in critical applications.
This module features up to 24 discrete digital output channels with 12-bit resolution, capable of sourcing or sinking up to 10 mA at +/- 10 V. Designed with flexibility in mind, the VMIVME-2540 supports configurations of 4, 8, 16, or 24 channels, making it adaptable to a wide range of industrial control requirements, from motor control to process monitoring.
The VMIVME-2540 integrates a VMEbus slave interface, enabling seamless compatibility with VME-based industrial control systems. This interface allows for efficient data exchange and control signal routing, supporting a variety of measurement and control functions such as event counting, frequency analysis, pulse width modulation, and quadrature position measurement.
Ideal for applications in robotics, automotive testing, medical instrumentation, and manufacturing automation, the VMIVME-2540 is built to withstand the rigors of industrial environments. Its robust design and advanced system timing controllers ensure long-term reliability, minimal maintenance, and easy integration into existing automation infrastructures. With comprehensive technical support and a proven track record in industrial performance, the GE VMIVME-2540 stands as a reliable and versatile solution for modern automation challenges.
