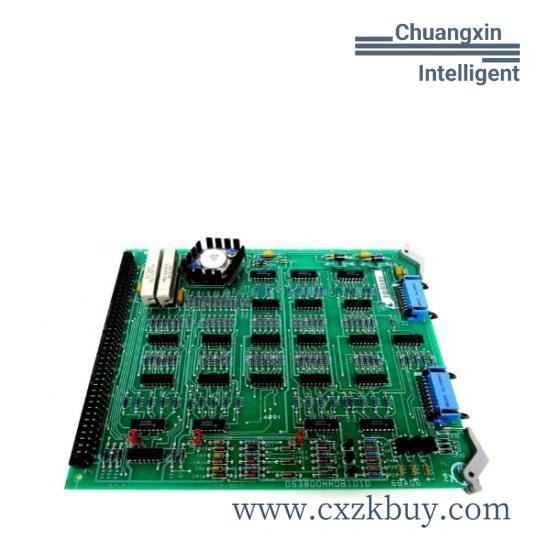

General Electric DS3800HRDB Circuit Board for Mark IV Speedtronic Line
The DS3800HRDB is a high-performance circuit board designed for use in GE’s Mark IV Speedtronic turbine control systems. It serves as a crucial component in ensuring precise speed regulation and control, making it indispensable for industrial control applications.
Manufacturer:General Electric
Model Number:DS3800HRDB
Module Type:Circuit Board
Compatibility:GE Mark IV Speedtronic System
Ports:One large female port on the short side
Terminals:Two male terminals with blue covers and two clips each
Capacitors:Six yellow capacitors
Resistors:Over 200 tiny resistors and two larger resistors
Diodes:Eight yellow diodes, sixteen orange diodes, and six black diodes
The DS3800HRDB from General Electric is meticulously engineered for reliability and precision in turbine control applications.
Featuring a robust design with a large female port and dual male terminals with protective blue covers, this circuit board ensures secure connectivity and enhances system performance.
Equipped with six yellow capacitors, the board can handle high-frequency operations efficiently.
With over two hundred tiny resistors and two larger ones, each labeled with its energy capacity, the DS3800HRDB offers unparalleled precision in controlling and monitoring turbine functions.
Additionally, the inclusion of various diodes—eight yellow, sixteen orange, and six black—ensures a wide operational range and exceptional stability under varying conditions.
Designed for seamless integration into GE’s Mark IV Speedtronic systems, the DS3800HRDB is a cornerstone component for modern turbine control systems, delivering unmatched reliability and efficiency.
