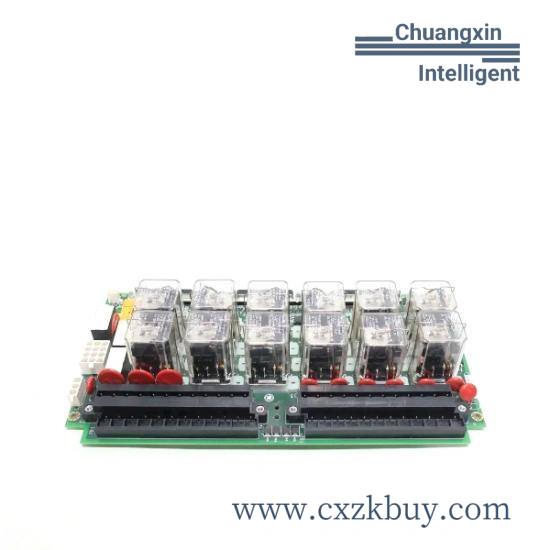

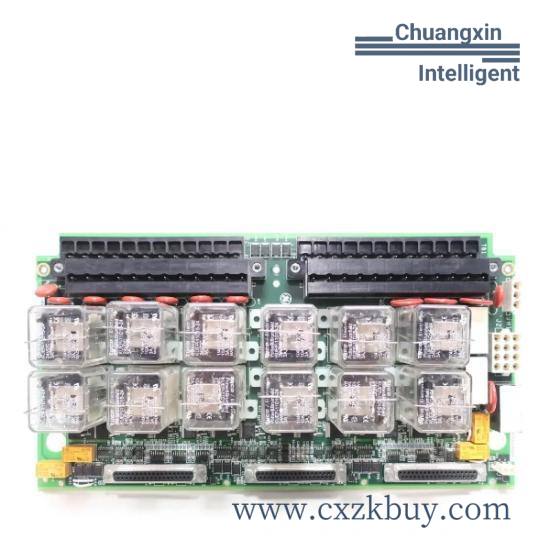

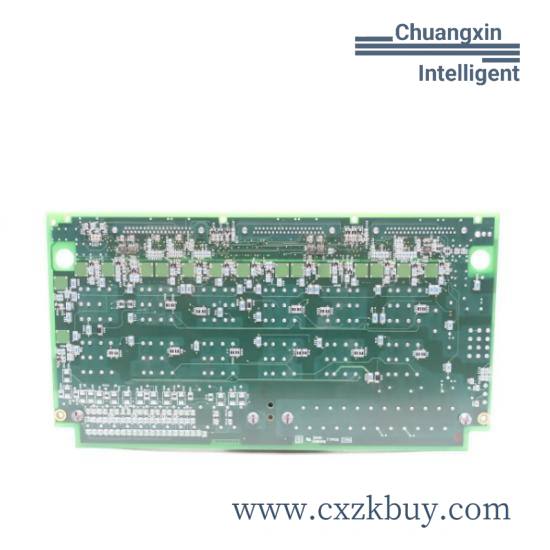

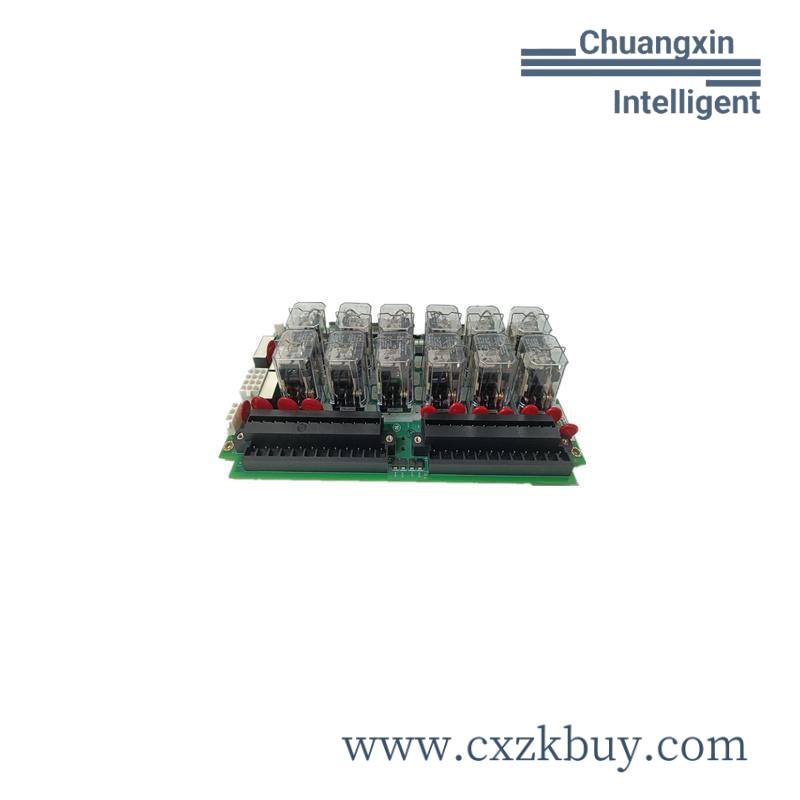

General Electric IS200TREGH1BDB, Advanced Turbine Control Module
The GE IS200TREGH1BDB Turbine Control Board is an essential component designed for efficient bidirectional serial digitization, crucial for advanced turbine control systems. This board plays a pivotal role in ensuring precise regulation and emergency shutdown capabilities in industrial turbine applications.
Model:IS200TREGH1BDB
Manufacturer:General Electric
Series:Mark VI
Function:Termination Board / Turbine Emergency Trip / Protection Board
Dimension:14.8 x 10.3 x 3.2 cm
Weight:0.24 kg
Interface Ports:3 Jack Connector Ports
Capacitors:4 Solid Yellow Rectangular Capacitors
Resistors:3 Black Variable Resistors
The GE IS200TREGH1BDB is meticulously crafted for the GE Mark VI turbine control system. Its design includes three black variable resistors or potentiometers located at the top right of the board, facilitating precise adjustments and optimal performance.
Sitting along the right border of the IS200TREGH1BDB are three jack connector ports, enabling seamless connectivity with various devices. This feature ensures efficient data transmission and enhances operational reliability.
Four large yellow capacitors are strategically placed in two different areas on the right side of the board. These components play a crucial role in stabilizing the electrical signals, contributing to the board’s robustness and longevity.
Designed with industrial environments in mind, the IS200TREGH1BDB supports a wide input voltage range, making it suitable for diverse applications. It is also built to withstand extreme temperatures, ensuring consistent performance in challenging conditions.
The compact and lightweight design of the IS200TREGH1BDB allows for easy installation and integration into existing systems without requiring significant modifications. This makes it an ideal choice for upgrading or replacing older components.
