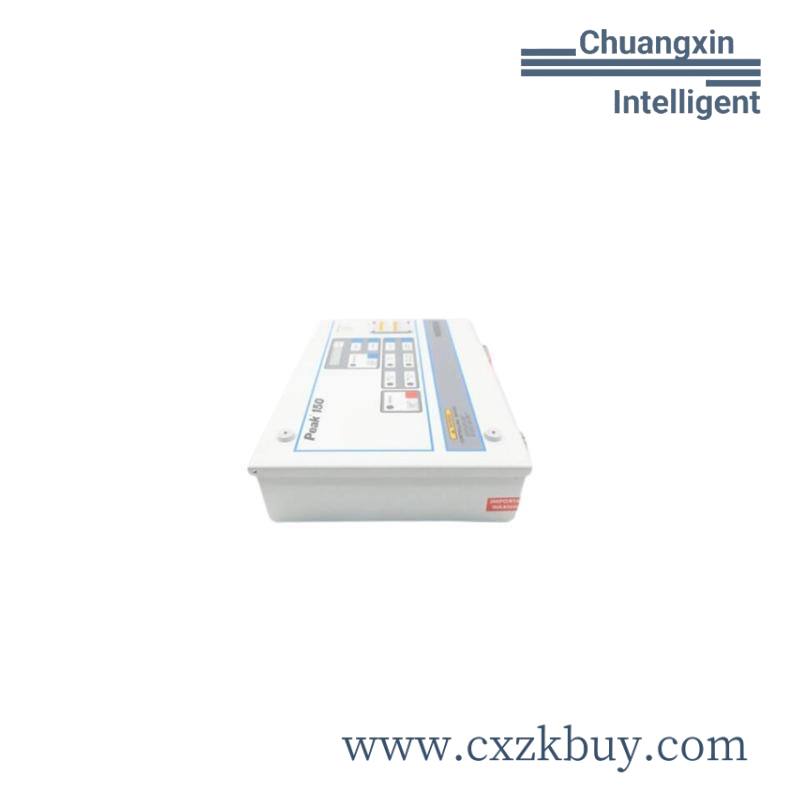

Woodward 9905-864 Peak 150 Low-Cost Digital Control for Steam Turbines

Woodward 9905-864 Peak 150 Low-Cost Digital Control for Steam Turbines

    The Woodward 9905-864 is a robust, low-cost digital control designed for single-valve and single-valve rack steam turbines. With its versatile input options and scalable outputs, it provides precise control over steam turbine operations, ensuring optimal performance and reliability.

Manufacturer:Woodward

Series:Peak 150

Part Number:9905-864

Power Type:AC/DC

Enclosure Rating:NEMA 4X

Analog Input:4-20mA or 1-5VDC

Remote Speed Setting Signal:Actual Speed Output Scalable, 4-20/0-1mA

Readout Output:Scalable, 4-20/0-1mA

Dimensions:19 inches (483mm) wide by 12.2 inches (310mm) high by 4.1 inches (105mm) deep

Operating Temperature Range:–15 to +60 °C (+5 to +140 °F)

Technical Manual Number:85565

    The Woodward 9905-864 is a high-quality digital control designed specifically for the management and regulation of steam turbines. Its low-cost design ensures efficient operation without compromising on performance. With support for both AC and DC power types, it is versatile enough to fit into various industrial settings. The NEMA 4X rated enclosure guarantees protection against water and dust ingress, making it suitable for harsh environments. The control supports analog input signals ranging from 4-20mA or 1-5VDC, allowing for accurate and reliable speed control. Users can easily set the desired speed remotely and monitor actual speed output through a scalable readout feature. This model is an ideal choice for industries looking for cost-effective yet reliable control solutions for their steam turbines.
