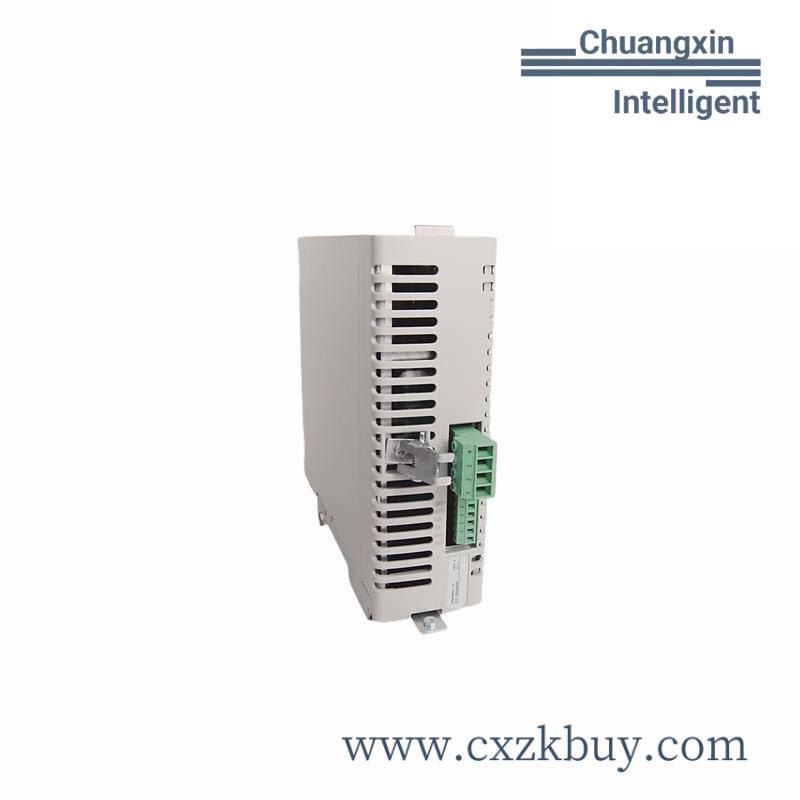

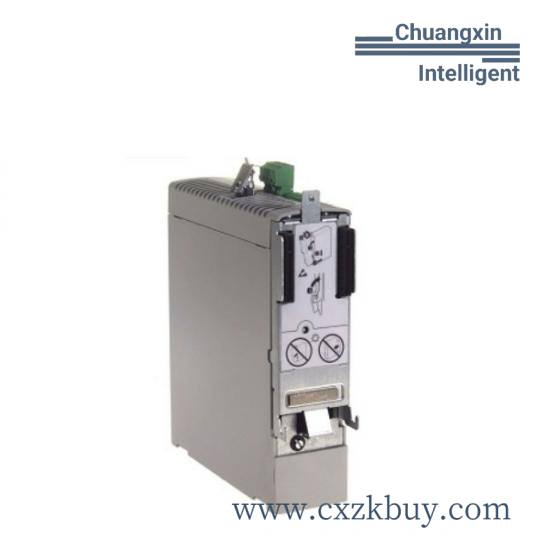

Allen-Bradley 2094-BM01-S Axis Module for Kinetix 6000 Multi-Axis Drive System
The Allen-Bradley 2094-BM01-S AC Drive Module is a high-efficiency, multi-axis control solution designed for industrial automation applications. It offers robust performance and reliable operation with advanced safety features, ensuring optimal machine productivity and operator safety.
Output Current:6.1 A (Continuous), 8.6 A (Peak)
Efficiency:98%
Internal Shunt Resistor:115 Ohms
Input Voltage:324-528V RMS, 3-Phase
Voltage Class:400V
Power Dissipation:57-126 Watts
Continuous Output Power:3.9 kW
Bandwidth Velocity Loop:500 Hz
Bandwidth Current Loop:1300 Hz
Pulse Width Modulation (PWM) Frequency:8 kHz
The Allen-Bradley 2094-BM01-S is an advanced multi-axis module designed to enhance the performance of the Kinetix 6000 Multi-Axis Drive Servo system. With its high efficiency and robust design, it delivers exceptional reliability and operational longevity.
This module is equipped with integrated Safe-Torque Off (STO) safety functionality, suitable for applications requiring up to Safety Integrity Level (SIL) 3 and Performance Level (PLe). The STO ensures safe operation and reduces the risk of accidents in the workplace.
The 2094-BM01-S supports up to seven (7) axes per eight-axis power rail, making it ideal for complex automation processes. Its compact design allows for efficient use of space, fitting seamlessly into existing setups.
With a heat dissipation rate of 93 watts, this module maintains optimal performance even under demanding conditions. Its internal shunt resistor of 115 ohms ensures stable operation and long-lasting performance.
Installation and maintenance are straightforward, thanks to clear and user-friendly manuals. Additionally, the module’s lightweight design at 5.6 pounds facilitates easy handling and placement.
