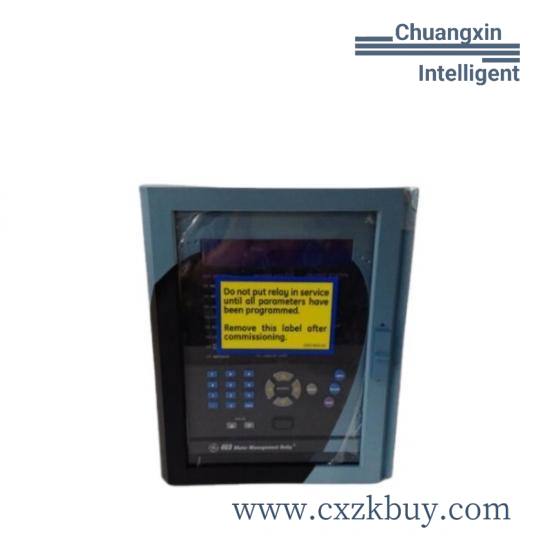

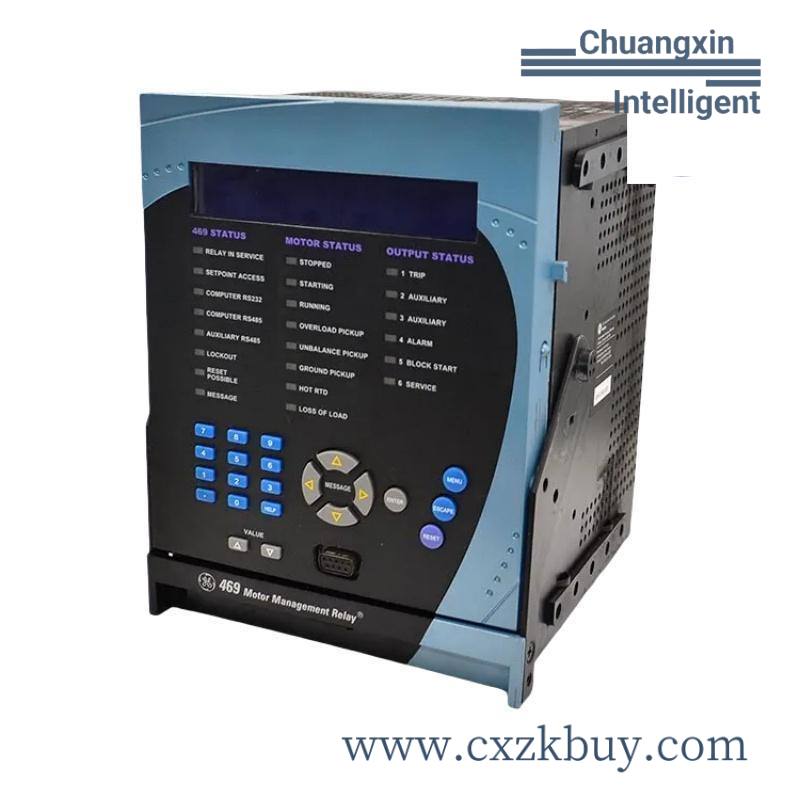

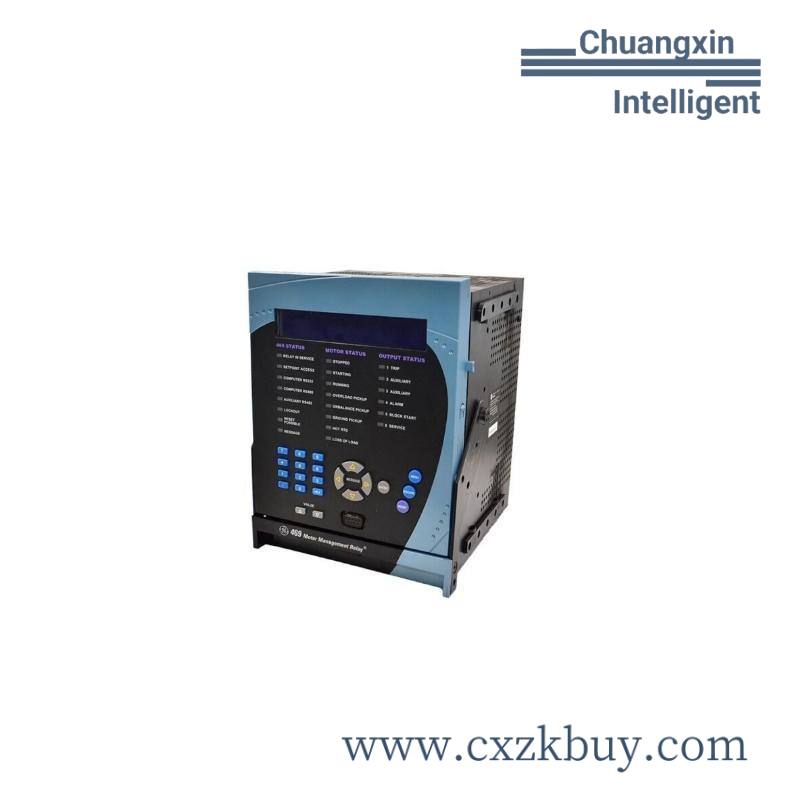

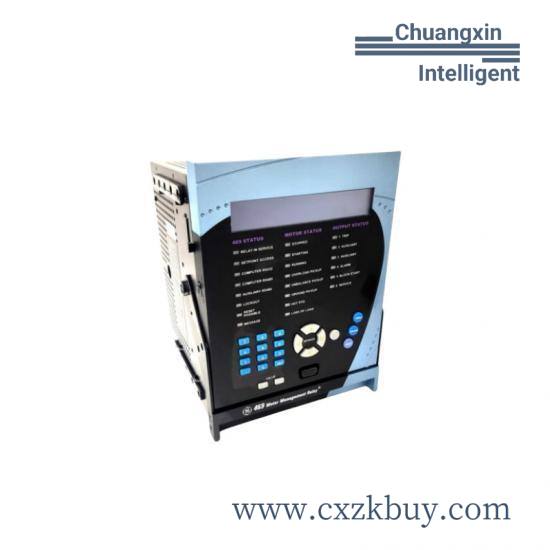

GE 469-P5-HI-A20-E Motor Management Relay – Comprehensive Monitoring & Control
The GE 469-P5-HI-A20-E is a Motor Management Relay designed for monitoring, controlling, and safeguarding medium and large motors. It offers advanced protection features including real-time temperature monitoring and overvoltage protection.
Manufacturer:General Electric Multilin
Model Number:469-P5-HI-A20-E
Phase CT Secondary Rating:5 A
Control Power:90-300VDC and 70-265VAC at 48-62Hz
Analog Outputs:Four 4-20mA outputs
Current Rating:390/500 mA (Max)
Line Voltage:90-300VDC, 70-265VAC
Enclosure Rating:20-X
Frequency Range:48-62 Hz
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2
RTD Inputs:Multiple RTD inputs for temperature measurement
Materials:Nickel, Copper, Platinum based RTDs
The GE 469-P5-HI-A20-E is an advanced Motor Protection Relay designed for industrial applications where reliable motor management is critical. With its robust design and multiple RTD inputs, it can accurately monitor the temperature and hottest points of motor systems, ensuring optimal performance and protection. Its enhanced front panel provides intuitive controls, making it user-friendly for operators. The relay supports a wide voltage range and multiple current ratings, making it versatile for various motor sizes. With conformal coating for harsh environments, this relay is built to withstand challenging industrial conditions. The 469-P5-HI-A20-E is equipped with four analog outputs and nine opto-isolated digital inputs, providing comprehensive data monitoring capabilities. Its larger LCD display offers clear visibility of operational parameters, enhancing ease of use and maintenance. Designed with pollution degree 2 and overvoltage category II standards, this relay ensures safety and reliability in industrial settings.
