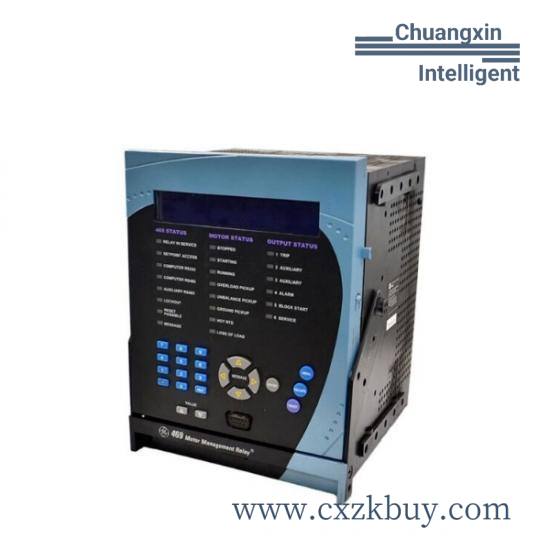

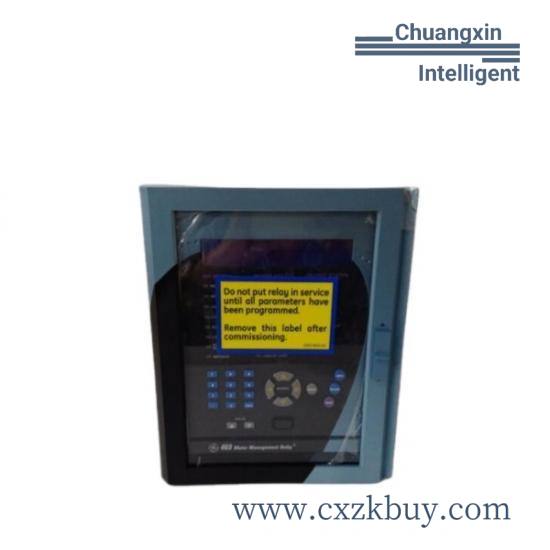

    The GE SR469-P5-HI-A20-E Motor Management Relay is a high-performance device designed for the effective management and protection of industrial motors. It ensures optimal performance and safety through advanced monitoring and control capabilities.

Model Number:469-P5-HI-A20-E

Brand:General Electric

Voltage Range (DC):90 – 300 VDC

Voltage Range (AC):70 – 265 VAC

Frequency Range:48 – 62 Hz

Phase Current Input:5 A

Analog Outputs:4 (0 to 1 mA)

Digital Inputs:9 opto-isolated inputs

Display:Enhanced display with larger LCD

Operating Temperature Range:-40°C to +60°C

Storage Temperature Range:-40°C to +80°C

Overvoltage Category:II

Insulation Voltage:300 V

Pollution Degree:2

RTD Inputs:Multiple (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Enclosure Rating:20-X

    The GE SR469-P5-HI-A20-E Motor Management Relay is a highly reliable and advanced solution designed specifically for the management and protection of medium and large-sized motors.

     Equipped with multiple RTD inputs, it accurately determines the motor’s temperature and the hottest point, ensuring optimal operational conditions.

     The relay supports up to four 4 to 20 mA analog outputs, which allows for precise control and monitoring.

     Its enhanced front panel design includes an RS-232 program port interface, facilitating easy programming and configuration.

     Furthermore, the panel features a draw-out handle that can be sealed, preventing unauthorized access.

     This model is ideal for industrial applications where precision, reliability, and safety are paramount.
